JDSU MAPS+1R CALIBRATION and JDSU MAPS+1R REPAIR

A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the JDSU MAPS+1R Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another RF Component?
Shop for Comparable Products on our  used RF Component page or new RF Component page


   JDSU MAPS+1R   Description / Specification:
JDSU MAPS+1R RF Switch MAP Series

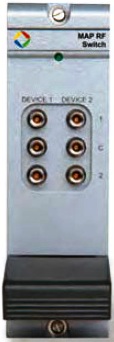

The JDSU MAPS+1R Multiple Application Platform (MAP) RF switch cassette series is a 50 Ohm coaxial switch for routing RF and microwave signals at frequencies up to 26.5 GHz. Comprising of single and dual 1 x 2 and bypass-type switches, these cassettes are an ideal solution for routing 10 Gb signals between power meters, receivers, and spectrum analyzers. The switches are based on mechanical latching actuators with a million-cycle lifetime. The single and independent dual 1 x 2 configurations units feature dual built-in 50 Ohm terminators for each of the unused ports, allowing efficient use as an A-or-B source selector. The single and independent dual bypass switches feature a single built-in 50 Ohm termination on one of the 'insert' loop ports which is activated when switch is in the bypass [straight through] state. Key Features. Single or independent dual. 1 x 2 and bypass versions. Mechanically latching. Built-in 50 Ohm terminations. Applications. Data source selection. Routing to main analyzer. Configurations. Single 1 x 2, dual independent 1 x 2. Single bypass, dual independent bypass.





Standard Calibration $285.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the JDSU MAPS+1R. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related RF Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

dBm
dBm (sometimes dBmW) is an abbreviation for the power ratio in decibels (dB) of the measured power referenced to one milliwatt (mW). Zero dBm equals one milliwatt. A 3 dB increase represents roughly doubling the power, a 3 dB decrease, the power is reduced by about one half.

Noise Figure
Noise Figure the ratio of the signal-to-noise power ratio at the input to the signal-to-noise power ratio at the output.

Standing Wave Ratio (SWR)
Standing wave ratio (SWR) is the ratio of the amplitude of a partial standing wave at an antinode (maximum) to the amplitude at an adjacent node (minimum).

Please contact us for your JDSU MAPS+1R CALIBRATION and/or JDSU MAPS+1R RF Switch MAP Series REPAIR
