JDSU MAPL+11T1FA CALIBRATION and JDSU MAPL+11T1FA REPAIR

A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the JDSU MAPL+11T1FA Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Tunable Laser Source (TLS)?
Shop for Comparable Products on our  used Tunable Laser Source (TLS) page or new Tunable Laser Source (TLS) page


   JDSU MAPL+11T1FA   Description / Specification:

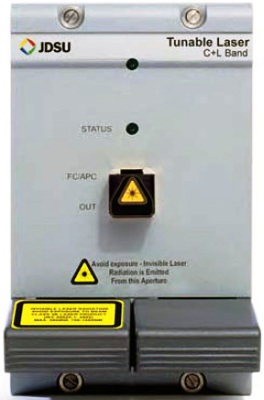

JDSU MAPL+11T1FA 1519 to 1630 nm Tunable Laser MAP

The JDSU MAPL+11T1FA MAP Tunable Laser Cassette is an external cavity tunable diode laser that offers exceptional speed, accuracy and flexibility at a competitive price, making it the ideal source for advanced fiberoptic systems and component testing. The wide wavelength range enables testing over the entire CL-band range with a single source, while its high speed,mode hop free sweeping not only reduces testing time, but permits in process testing and alignment of components during manufacturing.The auto calibration feature enables the laser to quickly verify the accuracy of its wavelength calibration, and recalibrate itself if needed, reducing laser down time for manual checks and calibrations. As with all MAP cassettes, it may be seamlessly integrated with the extensive family of MAP cassettes, which enables complete custom solutions to be rapidly assembled and expanded as needed.. Specifications. Wavelength Range: 1519 to 1630 nm, C + L-band. Wavelength Accuracy: ± 10 pm. Wavelength Resolution: 1 pm. Wavelength Tuning speed: 1 to 100 nm/s. Laser output: > +2.0 dB for 110 nm. Power Resolution: 0.01 dB. Line width, coherence control off: < 150 kHz. Line width, coherence control on: > 120 and < 300 MHz. Side mode supperession ratio (SMSR): 45 dB. Relative intensity noise (RlN): - 140 dB/Hz. Internal / External Modulation: Range 0.2 to 100 kHz, Depth 0 to 100 %, Duty cycle 15 to 85 %, Function Square, Sinusoidal and Triangular.





Standard Calibration $475.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the JDSU MAPL+11T1FA. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Optical Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Absolute Wavelength Accuracy
Absolute Wavelength Accuracy is the maximum difference between the actual wavelength and the displayed wavelength of the Optical Source. Wavelength is defined as wavelength in vacuum.

Decibel (dB)
A unit of measurement of optical power which indicates relative power. A -10 dB means a reduction in power by 10 times, -20 dB means another 10 times or 100 times overall, -30 means another 10 times or 1000 times overall and so on.

Nanometer (nm)
A unit of measure used to measure wavelength of light, meaning one one-billionth of a meter

Relative Intensity Noise (RIN)
Relative intensity noise (RIN), describes the instability in the power level of a laser. The noise term is important to describe lasers used in fiber-optic communication and LIDAR remote sensing. It is the square of the (spectrally resolved) RMS optical power amplitude divided by the measurement bandwidth and the square of the average optical power, expressed in dB/Hz.

Total Return loss
In an optical fiber, the loss that takes place at any discontinuity of refractive index, especially at an air-glass interface such as a fiber endface, at which a fraction of the optical signal is reflected back toward the source. RL = - 10log10 (Preflected/Preference)

Please contact us for your JDSU MAPL+11T1FA CALIBRATION and/or JDSU MAPL+11T1FA 1519 to 1630 nm Tunable Laser MAP REPAIR
