ANRITSU CMA5P100 CALIBRATION and ANRITSU CMA5P100 REPAIR

A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the ANRITSU CMA5P100 Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Optical Power Meter?
Shop for Comparable Products on our  used Optical Power Meter page or new Optical Power Meter page


   ANRITSU CMA5P100   Description / Specification:

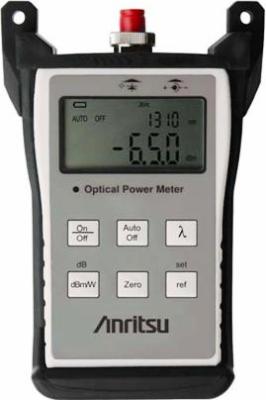

ANRITSU CMA5P100 Handheld Optical Power Meter

The Anritsu CMA5P100 Handheld Optical Power Meter is economical, accurate and easy-to-use handheld units for attenuation and power throughput measurements on point-to-point fiber optic links. It features a rugged design, built to withstand the difficult testing environment of fiber optic cable installation and maintenance. A large LCD display and a dual-way powering system including a 9V battery and an optional power adapter, ensure the CMA5 Series will adapt to any situation. With no warm up time, fast response time, auto-zeroing capabilities and tone detection, the CMA5 Series helps reduce measurement time. The Anritsu CMA5P100 Power Meters are ideal for testing single-mode and multimode fibers in various types of applications, thanks to multiple wavelength calibration at 850/1300 nm for datacom testing needs, 1310/1550/1625 nm for all WDM testing, as well as 1490 nm for FTTx testing needs. Specifications. Calibrated Wavelengths: 850, 1300, 1310, 1490, 1SS0, 1625nm. Fiber Type: MM/SM. Connector Adapter: FC, SC, ST. Power Range: +10 to -60 dBm. Guaranteed Specifications Power Range: +5 to -60 dBm (+10 to -50 dBm at 850 nm). Accuracy: ±0.2 dBm. Linearity: ±0.2 dB. Modulation Detect: 2 kHz. Stability (8 Hours): ±0.1 dB.





Standard Calibration $275.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the ANRITSU CMA5P100. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Optical Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Bandwidth
Bandwidth is the difference between the upper and lower frequencies in a contiguous set of frequencies within which a fiber optic component, link or network will operate.

Extinction Ratio (ER)
Extinction Ratio is the ratio of two optical power levels, of a digital signal generated by an optical source, (example a laser diode), where P1 is the optical power level generated when the light source is "on," and P0 is the power level generated when the light source is "off." The extinction ratio may be expressed as a fraction, in dB, or as a percentage.

Optical Signal-to-noise Ratio (OSNR)
Optical Signal-to-noise ratio is the ratio between the signal power and the noise power in a given bandwidth. Most commonly a reference bandwidth of 0.1 nm is used. This bandwidth is independent from the modulation format, the frequency and the receiver. For instance a OSNR of 20dB/0.1nm could be given, even the signal of 40 GBit DPSK would not fit in this bandwidth. OSNR is measured with a Optical Spectrum Analyzer. It is generally measured at the wavelength of interest.

Repeatability
Repeatability is the variation in a number of repeated measured quantities when measurement conditions are changed and restored. The value corresponds to half the spread between the minimum and maximum value measured.

Wavelength Repeatability
Wavelength Repeatability is the random uncertainty in reproducing a wavelength after detuning and re-setting the wavelength. The wavelength repeatability is ± half the span between the maximum and the minimum value of all actual values of these wavelengths. Example test condition: uninterrupted TLS output power, constant power level, temperature within operating temperature range, coherence control off, short time span. Note: NOTE The long-term wavelength repeatability can be obtained by taken the wavelength repeatability and wavelength stability into account.

Please contact us for your ANRITSU CMA5P100 CALIBRATION and/or ANRITSU CMA5P100 Handheld Optical Power Meter REPAIR
