ILX LIGHTWAVE FPM-8220 REPAIR and ILX LIGHTWAVE FPM-8220 CALIBRATION

Custom-Cal has a high success rate in the repair of the ILX LIGHTWAVE FPM-8220. A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the ILX LIGHTWAVE FPM-8220 Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Optical Power Meter?
Shop for Comparable Products on our  used Optical Power Meter page or new Optical Power Meter page


   ILX LIGHTWAVE FPM-8220   Description / Specification:

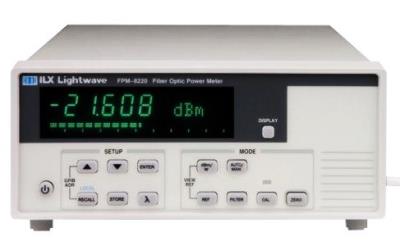

ILX LIGHTWAVE FPM-8220 800 to 1650 nm Fiber Optic Power Meter

The FPM-8220 Fiber Optic Power Meter combines accurate, repeatable power measurements with low polarization dependence in a simple instrument for use in the R&D or manufacturing testing of fiber optic components and systems. The device incorporates a low noise pico-ammeter capable of measuring over a dynamic range with high stability and repeatability necessary for precise measurement. Compatible FMH-8700 series interchangeable fiber optic power measurements heads deliver repeatable results for measurements up to +30 dBm over a wavelength range of 800 nm to 1650 nm.

Specifications:
Accuracy: ±2.5%
Repeatability: <±0.01 dB
Polarization dependent response: ±0.006 dB
Linearity: ±0.02 dB
Wavelength range: 800 to 1650 nm
Power range: dependent upon measurement head, -85 dBm to +30 dBm

GPIB and USB interface
5-digit, 7-segment LED display
Remote interface
Configuration store/recall







Related Optical Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

dBm
Optical power referenced to 1 millimatt

Multimode Fiber
Multimode Fiber has a large core (almost always 62.5 microns - a micron is one one millionth of a meter - but sometimes 50 microns) and is used with LED sources at wavelengths of 850 and 1300 nm for short distance, lower speed networks like LANs. Both multimode and singlemode fiber have an outside diameter of 125 microns - about 5 thousandths of an inch - just slightly larger than a human hair.

Power Repeatability
Power Repeatability is the random uncertainty in reproducing the power level after changing and re-setting the power level. The power repeatability is ± half the span (in dB) between the highest and lowest actual power. Note: - The long-term power repeatability can be obtained by taken the power repeatability and power stability into account.

Refractive Index
The refractive index or index of refraction of a substance is a measure of the speed of light in that substance. It is expressed as a ratio of the speed of light in vacuum relative to that in the considered medium. The velocity at which light travels in vacuum is a physical constant, and the fastest speed at which energy or information can be transferred. However, light travels slower through any given material, or medium, that is not vacuum.

Total insertion loss
A measure of the loss of light within an optical component


Please contact us for your ILX LIGHTWAVE FPM-8220 REPAIR and/or ILX LIGHTWAVE FPM-8220 800 to 1650 nm Fiber Optic Power Meter CALIBRATION
