ILX LIGHTWAVE FMH-87107 CALIBRATION and ILX LIGHTWAVE FMH-87107 REPAIR

A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the ILX LIGHTWAVE FMH-87107 Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Optical Power Sensor?
Shop for Comparable Products on our  used Optical Power Sensor page or new Optical Power Sensor page


   ILX LIGHTWAVE FMH-87107   Description / Specification:

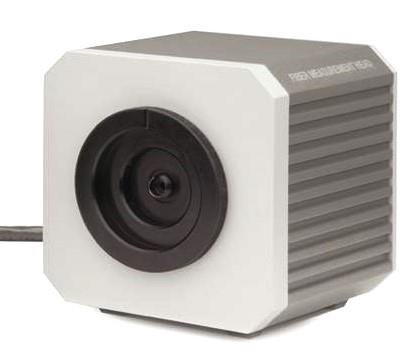

ILX LIGHTWAVE FMH-87107 800 to 1650 nm InGaAs Optical Power Measurement Head

The FMH-87107 Fiber Optic Measurement Head is an integrating sphere based measurement head compatible with the FPM-8220 Fiber Optic Power Meter. The FMH-87107 is designed to measure optical power from -60 dBm to +30 dBm over a wavelength range of 800-1650nm. Interchangeable fiber optic adapters allow the FMH-87107 Fiber Optic Measurement Head to be compatible with a wide range of connectors including FC, SC, LC, bare FC ferrule, and bare fiber. Careful attention to the design allows the FMH-87107 Fiber Optic Measurement Head to achieve a polarization dependent response of less than ±0.006 dB.

Specifications:
Wavelength Range: 800 to 1650 nm
Power Range: -60 to +30 dBm
Damage Threshold: +40 dBm <1 min
Accuracy: ±2.5% ±1 nW
Polarization Dependent Response: +0.006 dB
Measurement Repeatability: <+0.01 dB
Noise: ≤ 1 nW p-p
Linearity: ±0.02 dB
Entrance Aperture: 5 mm
Sensor Type: InGaAs
Connector Types: FC, SC, LC, bare fiber, bare ferrule







Related Optical Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Broadband Source (BBS)
A Broadband Source is a spectrally large source that emits a signal which contains a continuous range of frequencies with a broad optical bandwidth (usually 100 nm or more). Sometimes called a white light source, there are two different meanings of this term. Visible white light and a source which does not necessarily emit in the visible spectral region.

Coherence
Coherence is the pattern and or relationships of waves due to phase properties.

Linearity
Linearity is the relative difference between the displayed power ratio, Dx/D0, and the actual (true) power ratio Px/P0 caused by changing the displayed power level from the reference level, D0, to an arbitrary displayed level, Dx.

Power Flatness Over Modulation
When changing the wavelength and modulation frequency, and measuring the differences between actual and displayed power levels (in dB), the power flatness is ± half the span between the maximum and the minimum value of all differences.

Singlemode fiber
Singlemode Fiber has a small core, only about 9 microns, and is used for telephony and CATV with laser sources at 1300 and 1550 nm. It can go very long distances at very high speeds. Both multimode and singlemode fiber have an outside diameter of 125 microns - about 5 thousandths of an inch - just slightly larger than a human hair.

Please contact us for your ILX LIGHTWAVE FMH-87107 CALIBRATION and/or ILX LIGHTWAVE FMH-87107 800 to 1650 nm InGaAs Optical Power Measurement Head REPAIR
