AEROFLEX-IFR 2944B CALIBRATION and AEROFLEX-IFR 2944B REPAIR


A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the AEROFLEX-IFR 2944B Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Communication Analyzer?
Shop for Comparable Products on our
 used Communication Analyzer page or new Communication Analyzer page


   AEROFLEX-IFR 2944B   Description / Specification:   Spec Sheet

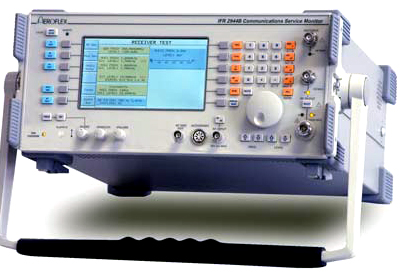

AEROFLEX-IFR 2944B Wireless Communications Service Monitor

The Aeroflex IFR 2944B Wireless Communications Service Monitor comes with a full performance spectrum analyzer. The standard TCXO allows results to be made reliably within a minute of switch on. Where even better stability is required, an optional OCXO is available. Stored settings may be recalled from internal memory allowing fast and straightforward setup. The spectrum analyzer provides spans from 100 Hz per division to full span and has a fully adjustable reference level. With the tracking generator provided as standard, duplexers and filters can be aligned quickly and easily. An offset facility provides testing of equipment with frequency translation. The Aeroflex 2944B will measure the power of low level signals such as those encountered when monitoring off-air signals or those found when probing a circuit. 150 W measurement is provided without the need for external attenuators, so high power base stations can be measured directly. Measurement accuracy of better than 10% is guaranteed all the way down to 5 mW on the N-Type connector. The signal generator provides coverage from 400 kHz to 1.05 GHz with +5 dBm output (+7 dBm overrange) and fast switching speed. Level accuracy is ±2 dB at all levels above -127 dBm. Full duplex operation is provided by the 2944B allowing testing of duplex radios as well as simultaneous testing of repeater transmit and receive paths. Full featured audio analysis tools include; audio bar charts, audio voltmeter, audio S/N meter, audio distortion meter and audio frequency meter. The oscilloscope can either be combined with the measurement screen in the Tx, Rx or AF test modes or ‘zoomed’ to a full screen display. Options. OPT1 - 600 ohm Matching Unit. OPT3 - High Stability OCXO. OPT4 - Parallel Interface. OPT5 - GPIB Interface. OPT8 - SSB Demodulator. OPT23 - CCITT Filter. OPT24 - CMESS Filter. OPT27 - Look and Listen Addition to Spectrum Analyzer. OPT30 - Bail Arm and Front Panel Stowage Cover. OPT32 - Internal Battery.





Standard Calibration $720.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the AEROFLEX-IFR 2944B. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Communication Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Bandwidth
Bandwidth is the difference between the upper and lower frequencies in a contiguous set of frequencies within which a fiber optic component, link or network will operate.

Multimode Fiber
Multimode Fiber has a large core (almost always 62.5 microns - a micron is one one millionth of a meter - but sometimes 50 microns) and is used with LED sources at wavelengths of 850 and 1300 nm for short distance, lower speed networks like LANs. Both multimode and singlemode fiber have an outside diameter of 125 microns - about 5 thousandths of an inch - just slightly larger than a human hair.

SDH
Synchronous Digital Hierarchy (SDH) is an international digital telecommunications network hierarchy which standardises transmission around the bit rate of 51.84 megabits per second, which is also called STS-1. Multiples of this bit rate comprise higher bit rate streams. Thus STS-3 is 3 times STS-1, STS-12 is 12 times STS-1, and so on. STS-3 is the lowest bit rate expected to carry ATM traffic, and is also referred to as STM-1 (Synchronous Transport Module-Level 1). The SDH specifies how payload data is framed and transported synchronously across optical fibre transmission links without requiring all the links and nodes to have the same synchronized clock for data transmission and recovery.


Please contact us for your AEROFLEX-IFR 2944B CALIBRATION and/or AEROFLEX-IFR 2944B Wireless Communications Service Monitor REPAIR
