EXFO IQ-1102X CALIBRATION and EXFO IQ-1102X REPAIR

A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the EXFO IQ-1102X Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Optical Power Meter?
Shop for Comparable Products on our  used Optical Power Meter page or new Optical Power Meter page


   EXFO IQ-1102X   Description / Specification:

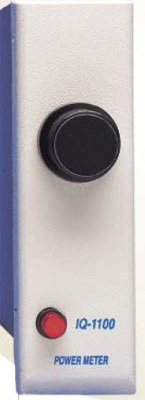

EXFO IQ-1102X Single Channel Optical Power Meter Module

The Exfo IQ-1102X Benchtop Optical Power Meter Module delivers accurate power measurements over a wide dynamic range along with high resolution and excellent linearity. Choose them for automatically measuring discrete values such as insertion loss or, alternately, for continuous monitoring and data acquisition. These stand-alone power meters provide exceptional performance, flexibility, user-friendliness and extensive integration capabilities. EXFO’s IQ-1102X single-channel power meter module series is part of the IQ solution. The IQ-203 mainframe and IQ-206 expansion units support up to 27 modules. For a virtually unlimited number of channels, link two or more systems together through the GPIB interface.. The Exfo IQ-1102X Power Meter offers ±0.015 dB linearity with a ±5 % absolute uncertainty and a 0.001 dB power resolution. Whether you are measuring absolute or relative power levels, count on efficient, highly accurate measurements. With its fast stabilization time and high sampling rate, the IQ-1102X Power Meter is ideal for system monitoring. To start your data acquisition and take full advantage of the high sampling rates, synchronize acquisitions using the two available trigger types. The sensitivity of the detector is -75 dBm. Specifications. Number of detectors: 1. Detector type: GeX. Detector size (mm): 2. Wavelength range (nm): 750 to 1700. Power range (dBm): 20 to -75. Uncertainty (%): ±5, (10 dBm to -35 dBm). Linearity (dB): ±0.015 (0 dBm to –35 dBm). Power resolution (dB): 0.001 (20 dBm to -35 dBm). Wavelength resolution (nm): 1. Fiber type (µm): 5/125 to 62.5/125.





Standard Calibration $160.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the EXFO IQ-1102X. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Optical Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Coherence Length
Average distance over which superimposed waves lose their phase relationships

Linewidth
Linewidth is the width of a spectral line in terms of wavelength, wave number and frequency.

Power Flatness Versus Wavelength
When changing the wavelength at constant power setting and recording the differences between actual and displayed power levels, the power flatness is ± half the span (in dB) between the maximum and the minimum of the measured power levels.

Spectral Width
Spectral Width is the wavelength interval over which the magnitude of all spectral components is equal to or greater than a specified fraction of the magnitude of the component having the maximum value. In optical communications applications, the usual method of specifying spectral width is the full width at half maximum. This is the same convention used in bandwidth, defined as the frequency range where power drops by less than half (at most -3 dB).

Telecom Bands
Optical fiber communications typically operate in a wavelength region corresponding to one of the following Bands. O Band (original): 1260–1360 nm. E Band (extended): 1360–1460 nm. S Band (short wavelengths): 1460–1530 nm. C Band (conventional): 1530–1565 nm. L Band (long wavelengths): 1565–1625 nm. U Band (ultralong wavelengths): 1625–1675 nm


Please contact us for your EXFO IQ-1102X CALIBRATION and/or EXFO IQ-1102X Single Channel Optical Power Meter Module REPAIR
