AEROFLEX-IFR 2030 CALIBRATION and AEROFLEX-IFR 2030 REPAIR


A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the AEROFLEX-IFR 2030 Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Signal Generator?
Shop for Comparable Products on our
 used Signal Generator page


   AEROFLEX-IFR 2030   Description / Specification:

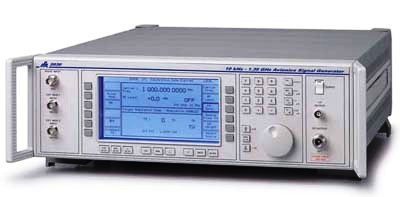

AEROFLEX-IFR 2030 1.35 GHz AM/FM Signal Generator

The Aeroflex 2030 1.35 GHz Signal Generator features a dot matrix display with soft key selected screen options allow flexibility of operation and ease of use. The output may be amplitude, phase, or frequency modulated with pulse modulation available as an option. Modulation is available using a combination of up to two external signal inputs and a built-in LF source. Available options include a second build-in modulation source; avionics modulation (ILS and VOR); pulse modulation; RF level profiling and complex sweep; electronic attenuator. Microprocessor control ensures that the instruments are flexible and easy to use and allows programming by the General Purpose Interface Bus (GPIB). Specifications. Frequency Range: 10 kHz to 1.35 GHz. Indication: 11 digits with annunciators. Resolution: 0.1 Hz. Accuracy: As frequency standard. Phase incrementing: The carrier phase can be advanced or retarded in steps of 1.5° using the rotary control. RF Output Range: -144 dBm to +13 dBm. Indication: 4 digits with unit annunciators. Resolution: 0.1 dB. Harmonics at RF levels up to +7 dBm : Better than -30 dBc for carrier frequencies to 1 GHz; Better than -27 dBc for carrier frequencies above 1 GHz. Four modulation modes are available: FM, Wideband FM, phaseM, AM or pulse (optional). Options; 001 - Second modulation oscillator. 002 - Pulse modulation. 003 - High output power. 005 - GMSK Bt 0.3. 006 - Avionics. 008 - RF profiles and complex sweep. 009 - Pulse generator. 010 - DME modulator. 012 - Electronic attenuator. 100 - Single fuse version. 105 - Modified pulse modulator. 112 - EXT MOD 2 input 600 ohm.





Standard Calibration $350.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the AEROFLEX-IFR 2030. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Average Power
Average power means that the energy transfer rate is to be averaged over many periods of the lowest frequency involved. For a CW signal, the lowest frequency and highest frequency are the same, so average power and power are the same. For an amplitude modulated wave, the power must be averaged over many periods of the modulation component of the signal as well.

Dynamic range
Dynamic range the ratio of a specified maximum level of a parameter, such as power, current, voltage or frequency, to the minimum detectable value of that parameter.

Modulation
Modulation is the process by which the characteristic of one wave (the carrier) is modified by another.

Repeatability
Repeatability is the variation in a number of repeated measured quantities when measurement conditions are changed and restored. The value corresponds to half the spread between the minimum and maximum value measured.


Please contact us for your AEROFLEX-IFR 2030 CALIBRATION and/or AEROFLEX-IFR 2030 1.35 GHz AM/FM Signal Generator REPAIR
