AEROFLEX-IFR 2393A CALIBRATION and AEROFLEX-IFR 2393A REPAIR

A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the AEROFLEX-IFR 2393A Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another RF Spectrum Analyzer?
Shop for Comparable Products on our  used RF Spectrum Analyzer page or new RF Spectrum Analyzer page


   AEROFLEX-IFR 2393A   Description / Specification:   Spec Sheet

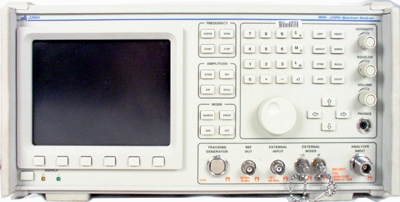

AEROFLEX-IFR 2393A 26.5 GHz Spectrum Analyzer

The Aeroflex-IFR 2393A 26.5 GHz Spectrum Analyzer is fully synthesized to give accurate frequency measurements. Even on wide spans the 2393A gives precise frequency measurements and an integral frequency counter enables the measurement of individual signals to 1 Hz resolution. The 2393A has resolution bandwidths down to 3 Hz. Narrow resolution bandwidths provide the ability to resolve closely spaced signals or sidebands. The 3 Hz filter is also used for close in signal analysis, for example it can be used to identify 50 or 60 Hz power line sidebands on oscillators. The average displayed noise level when using a 3 Hz filter is less than -135 dBm at 2.9 GHz and below -125 dBm at 26.5 GHz. The 2393A features built-in receivers for both AM and FM signals. Modulation detection can be set to narrowband or wideband mode. For an FM transmission a modulation scale of 1 kHz to 5 MHz per division allows direct measurement of the modulation component of carrier signals up to ±20 MHz deviation. The 2393A can be used for precompliance testing of electronic products to meet stringent EMC specifications. Specifications. Frequency Range: 9 kHz to 22 GHz. External Mixing 3 GHz to 300 GHz. Frequency Readout Accuracy: ± (3% of Span Width + Frequency Standard Accuracy + 50 % of RBW). Frequency Span Range: 10 Hz/div to 2.65 GHz/div. Accuracy: ± 5% of indicated span. Sweep Span > 200 HZ/div: 1 ms to 10 s/div in 1-2·5 sequence. Options. Option 02, Tracking Generator. Option 08, Quasi-Peak Detector.





Standard Calibration $605.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the AEROFLEX-IFR 2393A. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related RF Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Average Power
Average power means that the energy transfer rate is to be averaged over many periods of the lowest frequency involved. For a CW signal, the lowest frequency and highest frequency are the same, so average power and power are the same. For an amplitude modulated wave, the power must be averaged over many periods of the modulation component of the signal as well.

Harmonic
A harmonic of a wave is a component frequency of the signal that is an integer multiple of the fundamental frequency, i.e. if the fundamental frequency is f, the harmonics have frequencies 2f, 3f, 4f, . . . etc.

Phase Noise
Phase noise is the frequency domain representation of rapid, short-term, random fluctuations in the phase of a waveform, caused by time domain instabilities. Phase noise (L(f)) is typically expressed in units of dBc/Hz, representing the noise power relative to the carrier contained in a 1 Hz bandwidth centered at a certain offsets from the carrier.

Please contact us for your AEROFLEX-IFR 2393A CALIBRATION and/or AEROFLEX-IFR 2393A 26.5 GHz Spectrum Analyzer REPAIR
