CDI 501MRMH CALIBRATION


A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the CDI 501MRMH Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Torque Wrench? Shop for Comparable Products on our   new Torque Wrench page


   CDI 501MRMH   Description / Specification:

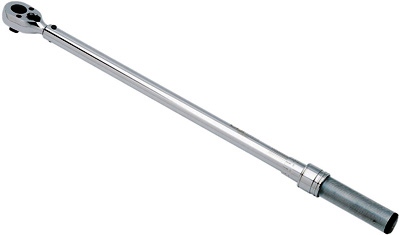

CDI 501MRMH 10-50 in-lb 1/4" Drive Click Type Adjustable Torque Wrench

The CDI 501MRMH metal handle click type torque wrench offers the user a rugged, industrial strength, able to withstand the rigors of professional use. Handles are lightly knurled for tough, non-slip grip. It is always a good idea to choose a torque wrench in which the desired torque setting falls within the middle range of the wrench. Features. Dual scale, calibrated dual direction. Fast, accurate and easy to set. Easy-to-read laser marked scales. Rugged for industrial use. Meets or exceeds ASME B107.14M-1994, ISO 6789 Standards. Specifications: Range: 10-50 in. lb. Increments: 0.5 in. lb. Accuracy: ± 3% CW ± 4% CCW of indicated value, CW, from 20% to 100% of full scale. Square Drive Size: 1/4". Head Style: Ratchet. Length: 10.15". Weight: 0.85 lbs.





Standard Calibration $40.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the CDI 501MRMH. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Mechanical Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Balance
A balance is a measuring instrument for determining the weight or mass of an object. In its traditional form, it consists of a pivoted horizontal lever with arms of equal length arms.

in-lb
Inch-pound is a measurment of torque expressed as a force (pound) multiplied by (i.e. “times”) a distance (inch). It is the amount of force applied in the direction of turning by one pound on a one inch lever. To convert Inch-pound to Inch-ounce multiply by 16. To convert Inch-pound to Foot-pound (ft-lb) multiply by 0.0833.

Snap Gauge
A snap gauge has four anvils or jaws, the first one or pair (outermost) are set using the upper limit (tolerance) of the part and the inner set adjusted to the lower limit of the part. A correctly machined part will pass the first set of jaws and stop at the second, the end of test.
