COPPER MOUNTAIN TECHNOLOGIES PLANAR 304-1 CALIBRATION and COPPER MOUNTAIN TECHNOLOGIES PLANAR 304-1 REPAIR

A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the COPPER MOUNTAIN TECHNOLOGIES PLANAR 304-1 Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Network Analyzer, SNA, VNA?
Shop for Comparable Products on our  used Network Analyzer, SNA, VNA page or new Network Analyzer, SNA, VNA page


   COPPER MOUNTAIN TECHNOLOGIES PLANAR 304-1 (304/1)   Description / Specification:

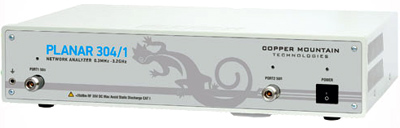

COPPER MOUNTAIN TECHNOLOGIES PLANAR 304-1 3.2 GHz S-parameter Vector Network Analyzer

The Copper Mountain Planar 304/1 is a 3.2 GHz S-parameter vector network analyzer designed for operation with an external PC. The interface is implemented in a virtual format: it connects to any Windows-capable machine via USB and delivers accurate testing and measurement through a platform that can keep up with constant advancements as well as be remotely accessed. The Planar 304/1 analyzer is an excellent solution for performing the full range of magnitude and phase measurements over the frequency from 100 kHz to 3.2 GHz. It provides a wide variety of analysis capabilities in the frequency and time domains as well as the frequency offset mode feature. Specifications. Impedance: 50 ohm (75 ohm connectors via adapters). Test port connector: N-type, female. Number of test ports: 2. Frequency range: 100 kHz to 3.2 GHz. Full CW frequency accuracy: ±5 x10 ^-6. Frequency setting resolution: 1 Hz. Number of measurement points: 1 to 200,001. IF bandwidth: 1 Hz to 30 kHz (with 1/1.5/2/3/5/7 steps). Dynamic range (IF bandwidth 10 Hz): from 300 kHz to 3.2 GHz: 130 dB, typ. 135 dB. Accuracy of transmission measurements (magnitude / phase): +5 dB to +15 dB (0.2 dB / 2°), -50 dB to +5 dB (0.1 dB / 1°). Test Port Directivity (without system error correction) from 300 kHz to 3.2 GHz: 25 dB. Test Port Output Match (without system error correction) from 300 kHz to 3.2 GHz: 15 dB. Test Port Output Power range: -55 dBm to +10 dBm. Test Port Output Power accuracy: ±1.0 dB. Test Port Output Power resolution: 0.05 dB. Test Port Input Match (without system error correction) from 300 kHz to 3.2 GHz: 25 dB. Test Port Input Damage level: +26 dBm. Measurement time per point: 125 µs. Measured parameters: S11, S12, S21, S22.





Standard Calibration $840.00 *
*This is a Web introductory price for one calibration of the COPPER MOUNTAIN TECHNOLOGIES PLANAR 304-1. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related RF Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Averaging
Averaging is a mathematical process to reduce the variation in a measurement by summing the data points from multiple measurements and dividing by the number of points summed.

Jitter
Jitter in technical terms is the deviation in or displacement of some aspect of the pulses in a high-frequency digital signal. Jitter is the time variation of a periodic signal in electronics and telecommunications, often in relation to a reference clock source. Jitter may be observed in characteristics such as the frequency of successive pulses, the signal amplitude, or phase of periodic signals. Jitter is a significant, and usually undesired, factor in the design of almost all communications links (e.g., USB, PCI-e, SATA, OC-48). In clock recovery applications it is called timing jitter.

Pulse Power
Pulse Power, the energy transfer rate is averaged over the pulse width. Pulse width is considered to be the time between the 50 percent risetime/falltime amplitude points. Pulse power averages out any aberrations in the pulse envelope such as overshoot or ringing.

Please contact us for your COPPER MOUNTAIN TECHNOLOGIES PLANAR 304-1 CALIBRATION and/or COPPER MOUNTAIN TECHNOLOGIES PLANAR 304-1 3.2 GHz S-parameter Vector Network Analyzer REPAIR
