Keysight (Agilent) 16950A CALIBRATION and Keysight (Agilent) 16950A REPAIR

A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the Keysight (Agilent) 16950A Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.




   Keysight (Agilent) 16950A   Description / Specification:

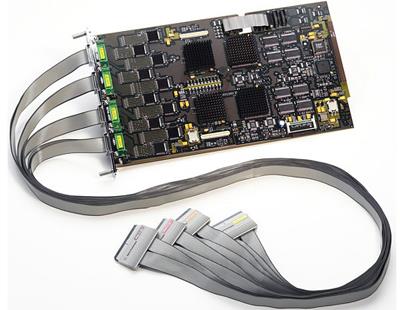

Keysight (Agilent) 16950A 68 Channel 4 GHz Timing/ 600 MHz State Logic Analysis Module

The Agilent 16950A 68 Channel 4 GHz Timing/600 MHz State Logic Analysis Module is compatible with the 16900 Series mainframes. Specifications. State speed: 600 MHz. Max data rate: 600 Mb/s (DDR), 800 Mb/s (Dual sample). Memory depth: 256 K to 64 M. Minimum eye width in system under test: 600 ps typical. Minimum time between active clock edges: 1.67 ns (600 Mb/s state mode). Minimum state clock pulse width: 1.67 ns. Timing analysis sample rate: 4 GHz. Time interval accuracy Within a pod pair: ± (1.0 ns + 0.01% of time interval reading). Time interval accuracy Between pod pairs: ± (1.75 ns + 0.01% of time interval reading). Timing zoom Memory depth: 64 K samples. Trigger position: Start, center, end, or user-defined. Minimum data pulse width: 750 ps.





Standard Calibration $530.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the Keysight (Agilent) 16950A. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

dBc
dBc (decibels relative to the carrier) is the power ratio of a signal to a carrier signal, expressed in decibels. If the dBc figure is positive, then the relative signal strength is greater than the carrier signal strength. If the dBc figure is negative, then the relative signal strength is less than carrier signal strength.

Load Regulation
Load regulation is the capability to maintain a constant voltage (or current) level on the output channel of a power supply despite changes in the supply's load (such as a change in resistance value connected across the supply output).

Power Linearity
When changing the power level and measuring the differences (in dB) between actual and displayed power levels, the power linearity is ± half the span (in dB) between the maximum and the minimum value of all differences.

Settling Time
Settling time of an output device is the time elapsed from the application of an ideal instantaneous step input to the time at which the amplifier output has entered and remained within a specified error band, usually symmetrical about the final value.

Please contact us for your Keysight (Agilent) 16950A CALIBRATION and/or Keysight (Agilent) 16950A 68 Channel 4 GHz Timing/ 600 MHz State Logic Analysis Module REPAIR
