Keysight (Agilent) 34980A REPAIR and Keysight (Agilent) 34980A CALIBRATION

Custom-Cal has a high success rate in the repair of the Keysight (Agilent) 34980A. A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the Keysight (Agilent) 34980A Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Data Acquisition?
Shop for Comparable Products on our  used Data Acquisition page


   Keysight (Agilent) 34980A   Description / Specification:

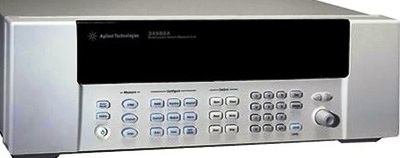

Keysight (Agilent) 34980A 8 Slot Data Acquisition Mainframe

The 34980A multifunction switch/measure unit handles system switching up to 26.5 GHz and provides basic measurements and system control. It also offers DMM measurements, counter/ totalizer functionality, digital I/O with pattern capabilities, and analog outputs with basic waveforms. And with its standard connectors and software drivers, computer-standard I/O, and Web browser interface, the 34980A easily integrates into electronic functional test and data acquisition systems.

Specifications:
DAC/Switch unit (8-slots, up to 560 2-wire channels)
Easy remote access with built-in web interface
Integrated SCPI programming language

Resolution: 6 ½ digit
Maximum scan rate: 1000 channels/second
Computer interfaces: GPIB, USB, LAN (LXI)
Number of compatible plug-in modules: 21
Analog measurements: Voltage, current, resistance, frequency, and temperature
Digital IO: Up to 512 bits
Analog output: -10 V to +10 V, 20 mA
Multiplexing maximum: 640 1-wire, 560 2-wire
Matrix maximum: 4096 cross points
General purpose maximum: 256 switches
RF multiplexing maximum: 128 channels, 3 GHz
μWave switching maximum: 24 channels, 26 GHz







Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

dBm
dBm (sometimes dBmW) is an abbreviation for the power ratio in decibels (dB) of the measured power referenced to one milliwatt (mW). Zero dBm equals one milliwatt. A 3 dB increase represents roughly doubling the power, a 3 dB decrease, the power is reduced by about one half.

Millimeter-wave
Millimeter-wave is a term that generally refers to frequencies of 26.5 GHz and above. That is where signal wavelengths fall below approximately 10 mm, and thus the terminology changes from centimeters to millimeters.

Power Repeatability
Power Repeatability is the random uncertainty in reproducing the power level after changing and re-setting the power level. The power repeatability is ± half the span (in dB) between the highest and lowest actual power. Note: - The long-term power repeatability can be obtained by taken the power repeatability and power stability into account.

Stability
Stability is the extent to which a specified property, characteristic, or parameter of a substance, device, or apparatus, remains fixed with the passage of time or with varying environmental conditions.

Please contact us for your Keysight (Agilent) 34980A REPAIR and/or Keysight (Agilent) 34980A 8 Slot Data Acquisition Mainframe CALIBRATION
