TEKTRONIX MSO4102B-L CALIBRATION and TEKTRONIX MSO4102B-L REPAIR


A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the TEKTRONIX MSO4102B-L Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Oscilloscope?
Shop for Comparable Products on our
 used Oscilloscope page


   TEKTRONIX MSO4102B-L   Description / Specification:   Spec Sheet

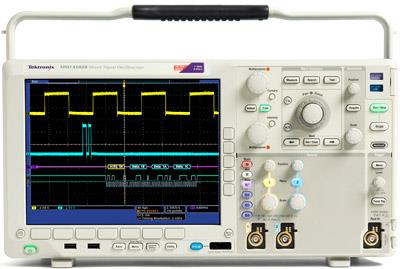

TEKTRONIX MSO4102B-L 2+16 Ch 1 GHz, 5 GS/s, Mixed Signal Oscilloscope

The Tektronix MSO4102B-L Mixed Signal Oscilloscope can analyze up to 18 analog and digital signals with a single instrument to quickly find and diagnose problems in complex designs. Bandwidths up to 1 GHz and a minimum of 5x oversampling on all channels ensure you have the performance you need to see fast-changing signal details. To capture long windows of signal activity while maintaining fine timing resolution, the MSO4102B-L offers a deep record length of 5M points standard on all channels. With Wave Inspector® controls for rapid waveform navigation, automated serial and parallel bus analysis, limit and mask testing, and automated power analysis

Vertical System Analog Channels
Input Channels: 2.
Analog Bandwidth (-3 dB) 5 mV/div -1 V/div: 1 GHz.
Calculated Rise Time 5 mV/div (typical): 350 ps.
Hardware Bandwidth Limits: 20 MHz or 250 MHz.
Input Coupling: AC, DC.
Input Impedance 1 MΩ: ±1%, 50 Ω ±1%.
Input Sensitivity, 1 MΩ: 1 mV/div to 10 V/div.
Input Sensitivity, 50 Ω: 1 mV/div to 1 V/div.
Vertical Resolution: 8 bits (11 bits with Hi Res).
Max Input Voltage, 1 MΩ: 300 VRMS CAT II with peaks ≤ ±425 V.
Max Input Voltage, 50 Ω: 5 VRMS with peaks ≤ ±20 V (DF ≤ 6.25%).
DC Gain Accuracy: ±1.5%, derated at 0.10%/°C above 30 °C.
Channel-to-Channel Isolation: Any two channels at equal vertical scale ≥100:1 at ≤100 MHz and ≥30:1 at >100 MHz up to the rated bandwidth.

Horizontal System Analog Channels
Maximum Sample Rate (All channels): 5 GS/s.
Maximum Record Length (All channels): 20M.
Duration at Highest Sample Rate (All channels): 4 ms.
Time Base Range: 400 ps to 1,000 s.
Time Base Delay Time Range: -10 divisions to 5000 s.
Channel-to-Channel Deskew Range: ±125 ns.
Time Base Accuracy: ±5 ppm over any ≥1 ms interval.

Vertical System Digital Channels
Input Channels: 16 Digital (D15 - D0).
Thresholds: Per-channel Thresholds.
Threshold Selections: TTL, CMOS, ECL, PECL, User Defined.
User-defined Threshold Range: ±40 V.
Maximum Input Voltage: ±42 Vpeak.
Threshold Accuracy: ±(100 mV + 3% of threshold setting).
Input Dynamic Range: 30 Vp-p ≤200 MHz, 10 Vp-p >200 MHz.
Minimum Voltage Swing: 400 mV.
Probe Loading: 100 kΩ in parallel with 3 pF.
Vertical Resolution: 1 bit.

Horizontal System Digital Channels
Maximum Sample Rate (Main): 500 MS/s (2 ns resolution).
Maximum Record Length (Main): 5M points.
Maximum Sample Rate (MagniVu): 16.5 GS/s (60.6 ps resolution).
Maximum Record Length (MagniVu): 10k points centered around the trigger.
Minimum Detectable Pulse Width: 1 ns.
Channel-to-Channel Skew: 200 ps.





Standard Calibration $240.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the TEKTRONIX MSO4102B-L. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

dBm
dBm (sometimes dBmW) is an abbreviation for the power ratio in decibels (dB) of the measured power referenced to one milliwatt (mW). Zero dBm equals one milliwatt. A 3 dB increase represents roughly doubling the power, a 3 dB decrease, the power is reduced by about one half.

Millimeter-wave
Millimeter-wave is a term that generally refers to frequencies of 26.5 GHz and above. That is where signal wavelengths fall below approximately 10 mm, and thus the terminology changes from centimeters to millimeters.

Power Repeatability
Power Repeatability is the random uncertainty in reproducing the power level after changing and re-setting the power level. The power repeatability is ± half the span (in dB) between the highest and lowest actual power. Note: - The long-term power repeatability can be obtained by taken the power repeatability and power stability into account.

Stability
Stability is the extent to which a specified property, characteristic, or parameter of a substance, device, or apparatus, remains fixed with the passage of time or with varying environmental conditions.
