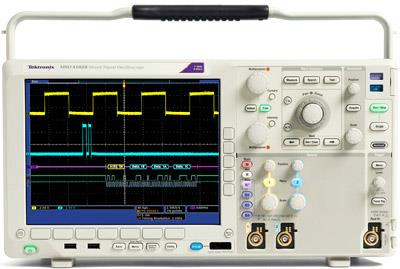

The Tektronix DPO4102B-L Digital Phosphor Oscilloscope can analyze up to 2 analog signals with a single instrument to quickly find and diagnose problems in complex designs. Bandwidths up to 1 GHz and a minimum of 5x oversampling on all channels ensure you have the performance you need to see fast-changing signal details. To capture long windows of signal activity while maintaining fine timing resolution, the DPO4102B-L offers a deep record length of 20M points standard on all channels. With Wave Inspector® controls for rapid waveform navigation, automated serial and parallel bus analysis, limit and mask testing, and automated power analysis
Vertical System Analog Channels
Input Channels: 2.
Analog Bandwidth (-3 dB) 5 mV/div -1 V/div: 1 GHz.
Calculated Rise Time 5 mV/div (typical): 350 ps.
Hardware Bandwidth Limits: 20 MHz or 250 MHz.
Input Coupling: AC, DC.
Input Impedance 1 MΩ: ±1%, 50 Ω ±1%.
Input Sensitivity, 1 MΩ: 1 mV/div to 10 V/div.
Input Sensitivity, 50 Ω: 1 mV/div to 1 V/div.
Vertical Resolution: 8 bits (11 bits with Hi Res).
Max Input Voltage, 1 MΩ: 300 VRMS CAT II with peaks ≤ ±425 V.
Max Input Voltage, 50 Ω: 5 VRMS with peaks ≤ ±20 V (DF ≤ 6.25%).
DC Gain Accuracy: ±1.5%, derated at 0.10%/°C above 30 °C.
Channel-to-Channel Isolation: Any two channels at equal vertical scale ≥100:1 at ≤100 MHz and ≥30:1 at >100 MHz up to the rated bandwidth.
Horizontal System Analog Channels
Maximum Sample Rate (All channels): 2.5 GS/s.
Maximum Record Length (All channels): 5M.
Duration at Highest Sample Rate (All channels): 1 ms.
Time Base Range: 400 ps to 1,000 s.
Time Base Delay Time Range: -10 divisions to 5000 s.
Channel-to-Channel Deskew Range: ±125 ns.
Time Base Accuracy: ±5 ppm over any ≥1 ms interval.
|
