A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the TEKTRONIX DPO71604C Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Oscilloscope?
Shop for Comparable Products on our
 used Oscilloscope page

   TEKTRONIX DPO71604C   Description / Specification:

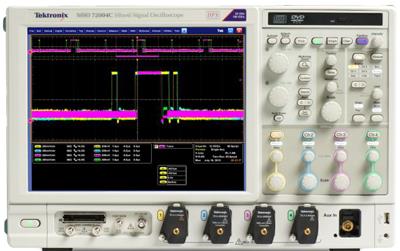

TEKTRONIX DPO71604C 4 Ch 16 GHz Digital Phosphor Oscilloscope

The Tektronix DPO71604C with 4 analog channels has a high signal-to-noise ratio and low internal noise floor. It allows you to find the smallest anomalies affecting the DUT's performance. Bandwidth enhancement eliminates imperfections in frequency response all the way to the probe tip. User-selectable filters for each channel provide magnitude and phase correction for more accurate representation of extremely fast signals.

Analog channels: 4.
Analog bandwidth (user-selectable DSP enhance) (-3 dB): 16 GHz.
Hardware Analog Bandwidth (-3 dB): 4 GHz).
Rise time (typical): 24.5 ps (10% to 90%), 17 ps (20% to 80%).
Sample rate (1, 2 ch): 100 GS/s (maximum sample rate is 50 GS/s on digital channels routed to an analog channel through the iCapture™ analog mux).
Sample rate (3, 4 ch): 50 GS/s.
Record length, points (each channel, standard): 10 M.
Timing resolution: 10 ps (100 GS/s).

Vertical system - Analog channels.
DC gain accuracy: ±2% (of reading).
Channel delay (typical): <=10 ps for any two channels at equal V/div and coupling.
Signal-to-Noise ratio (typical): 34 dB.
Input coupling: DC (50 Ω), GND.
Input resistance selection: 50 Ω ±3%, 1 MΩ with TCA-1MEG adapter.
Input sensitivity range: 10 mV/div to 500 mV/div (100 mV to 5 V full scale).
Maximum input voltage, 50 Ω: <5.0 VRMS for >=100 mV/div; 1.0 VRMS for <100 mV/div.

Horizontal system.
Channel-to-Channel: deskew range ±75 ns.
Time base accuracy: ±1.5 ppm initial accuracy, aging <1 ppm per year.
Time base delay time range: -5.0 ks to 1.0 ks.
Trigger jitter: <100 fsRMS (1 psRMS [typical] with enhanced triggering off).


Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

dBc (decibels relative to the carrier) is the power ratio of a signal to a carrier signal, expressed in decibels. If the dBc figure is positive, then the relative signal strength is greater than the carrier signal strength. If the dBc figure is negative, then the relative signal strength is less than carrier signal strength.

Load Regulation
Load regulation is the capability to maintain a constant voltage (or current) level on the output channel of a power supply despite changes in the supply's load (such as a change in resistance value connected across the supply output).

Power Linearity
When changing the power level and measuring the differences (in dB) between actual and displayed power levels, the power linearity is ± half the span (in dB) between the maximum and the minimum value of all differences.

Settling Time
Settling time of an output device is the time elapsed from the application of an ideal instantaneous step input to the time at which the amplifier output has entered and remained within a specified error band, usually symmetrical about the final value.

Please contact us for your TEKTRONIX DPO71604C CALIBRATION and/or TEKTRONIX DPO71604C 4 Ch 16 GHz Digital Phosphor Oscilloscope REPAIR
