TEKTRONIX RSA306B REPAIR and TEKTRONIX RSA306B CALIBRATION

Custom-Cal has a high success rate in the repair of the TEKTRONIX RSA306B. A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the TEKTRONIX RSA306B Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another RF Spectrum Analyzer?
Shop for Comparable Products on our  used RF Spectrum Analyzer page or new RF Spectrum Analyzer page


   TEKTRONIX RSA306B   Description / Specification:

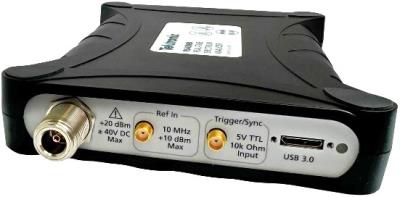

TEKTRONIX RSA306B 6.2 GHz USB Spectrum Analyzer

The Tektronix RSA306B USB spectrum analyzer provides real time spectrum analysis, streaming capture, and deep signal analysis capabilities for signals from 9 kHz to 6.2 GHz all in a low-cost, highly portable package that is ideal for field, factory, or academic use

Specifications:
Frequency Range: 9 kHz to 6.2 GHz
Measurement Range: +20 dBm to -160 dBm
Acquisition Bandwidth: 40 MHz
Sweep Speed: 2 per second
Minimum signal duration with 100% probability of intercept: 15 µs

17 Analysis measurement displays
Analyzes WLAN, APCO P25, Bluetooth, LTE, FM, AM, PM, and direct audio measurements







Related RF Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Adjacent Channel Power
Adjacent Channel Power is the power from a modulated communications channel that leaks into an adjacent channel. This leakage is usually specified as a ratio to the power in the main channel, but is sometimes an absolute power.

Fall Time
Fall time is the time required for the amplitude of a pulse to decrease (fall) from a specified value (usually 90 percent of the peak value exclusive of overshoot or undershoot) to another specified value (usually 10 percent of the maximum value exclusive of overshoot or undershoot).

Overshoot
Overshoot is the distortion that follows a major transition; the difference between the peak power point and the pulse-top amplitude computed as a percentage of the pulse-top amplitude.

Please contact us for your TEKTRONIX RSA306B REPAIR and/or TEKTRONIX RSA306B 6.2 GHz USB Spectrum Analyzer CALIBRATION
