AEROFLEX-IFR 3902 REPAIR and AEROFLEX-IFR 3902 CALIBRATION

Custom-Cal has a high success rate in the repair of the AEROFLEX-IFR 3902. A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the AEROFLEX-IFR 3902 Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Communication Analyzer?
Shop for Comparable Products on our  used Communication Analyzer page or new Communication Analyzer page


   AEROFLEX-IFR 3902   Description / Specification:

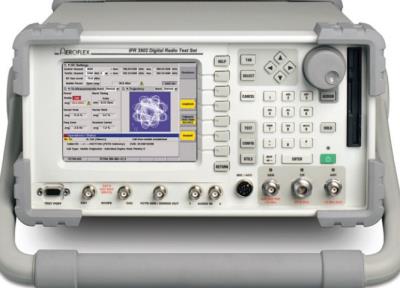

AEROFLEX-IFR 3902 Digital Radio Test Set

The Aeroflex/IFR 3902 Digital Radio Test Set is a portable test solution for advanced professional analog and digital radio communications.
The Test Set is designed to support field upgrades to install optional systems and features, allowing the user to expand the measurement and signaling capabilities of the unit to accommodate industry changes and advancements.
It includes a Spectrum Analyzer, Channel Analyzer and Oscilloscope.

Features.
Frequency Reference input or output connection allows Test Set to use an external frequency standard or to serve as a frequency standard for other test equipment.
Parallel measuring methods contribute to fast operation.
Audible and visual warning system with automatic disconnection provides protection against RF input overload and RF Generator excessive reverse power.
Full color display with a maximize - minimize tile display for customized screen configurations.
Tone Signaling Test function to evaluate tone-activated pagers and control systems.
Memory function to store instrument settings, test results and other data.
USB version 1.1 memory stick/jump drive connector for transferring data to and from the Test Set’s internal memory.
Printer ports to enable screen captures and AutoTest results to be printed.
Output from the signal analyzer at 10.7 MHz from the IF output BNC connection.
9 pin VGA video output connector which allows use of an external monitor.

Optional features include:
Site Monitoring Application.
IQ Gen Modulation.
Audio Analyzer.
Harmonics and Spurious Measurements.
Tracking Generator.
Analyzer OBW and Power between Markers.
POCSAG Testing.
