KAELUS IBA-0901B CALIBRATION and KAELUS IBA-0901B REPAIR

A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the KAELUS IBA-0901B Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Cellular Test Set? Shop for Comparable Products on our   new Cellular Test Set page


   KAELUS IBA-0901B   Description / Specification:

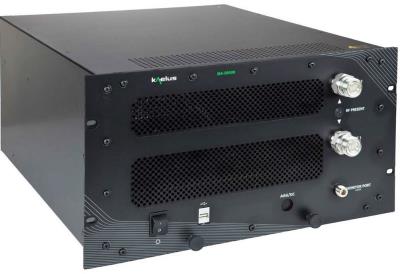

KAELUS IBA-0901B 880–915 MHz PIM Analyzer

The Kaelus IBA-0901B PIM Analyzer is a complete bench top and rack mounting PIM test solution used with a system controller and intuitive user software. This solution comes in model variations that cover all major commercial wireless bands. It has two test ports to support a Reverse IM measurement on either port and a forward IM measurement port-to-port. It can be fitted with optional internal DC/AISG Bias Tee.
Specifications.

System.
Measurement method: Port 1 Reverse; Port 2 Reverse; Port-to-Port Forward PIM.
Residual PIM: < -125dBm (x 2 @ 43dBm).
IM order: 3rd, 5th, 7th, 9th and 11th order.
User interface ports: 1 x USB Type B, 1 x USB Type A, 1x Monitor Port (N Female).
Bias-Tee Option: 1 x AISG / DC on 8 Pin DIN Female.
Test ports: 2 x RF Output (7-16 DIN Female).
RTF Module: RTF-1000.

Transmitter.
Transmit frequencies: 925 - 960 MHz.
Frequency increment: 100 kHz.
Frequency accuracy: ± 5ppm maximum, aging ± 1ppm maximum after first year.
Power per tone (adjustable): +20 to +44dBm | 0.1W to 25W (Effective June 28, 2018), +30 to +44dBm | 1W to 25W (Units manufactured before June 28, 2018).
Power accuracy (per tone): ± 0.35 dB.

Receiver.
Receive band (100kHz steps): 880 - 915 MHz.
Measurement noise floor: < -130 dBm (-135 dBm, typical).
Measurement range: -55 dBm to -130 dBm.





Standard Calibration $1,780.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the KAELUS IBA-0901B. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Communication Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Dynamic Range
In a transmission system, the ratio of the overload level to the noise level of the system, usually expressed in dB. Ratio of the highest to lowest detectable signal of a system, expressed in dB.

POS
Packet over SONET/SDH (POS), is a communications protocol for transmitting packets in the form of the Point to Point Protocol (PPP) over SDH or SONET, which are both standard protocols for communicating digital information using lasers or light emitting diodes (LEDs) over optical fibre at high line rates.

TDMA: Time Division Multiple Access
Time Division Multiple Access (TDMA) is a method of sharing a communications carrier by assigning separate time slots to individual users. A channel is defined by a carrier frequency and time slot.

Please contact us for your KAELUS IBA-0901B CALIBRATION and/or KAELUS IBA-0901B 880–915 MHz PIM Analyzer REPAIR
