KAELUS IBA-0700HA CALIBRATION and KAELUS IBA-0700HA REPAIR


A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the KAELUS IBA-0700HA Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Cellular Test Set? Shop for Comparable Products on our   new Cellular Test Set page


   KAELUS IBA-0700HA   Description / Specification:

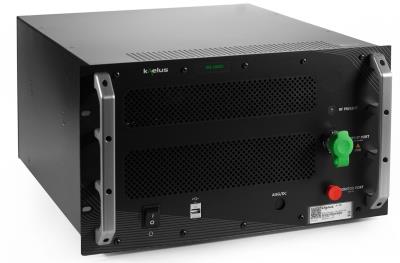

KAELUS IBA-0700HA 776-787 MHz PIM Analyzer

The Kaelus IBA-0700HA PIM Analyzer is a complete bench top and rack mounting PIM test solution used with a system controller and intuitive user software. This solution comes in model variations that cover all major commercial wireless bands. It measures Reverse/reflected IM only. It can be fitted with optional internal DC/AISG Bias Tee.
Specifications.

System.
Measurement method: Reverse (Reflected) PIM.
Residual PIM: < -125dBm (x 2 @ 43dBm).
IM order: 3rd, 5th, 7th, 9th and 11th order.
User interface ports: 1 x USB Type B, 1 x USB Type A, 1x Monitor Port (N Female).
Bias-Tee Option: 1 x AISG / DC on 8 Pin DIN Female.
Test ports: 2 x RF Output (7-16 DIN Female).
RTF Module: RTF-1000.

Transmitter.
Transmit frequencies: 728 - 757 MHz.
Frequency increment: 100 kHz.
Frequency accuracy: ± 5ppm maximum, aging ± 1ppm maximum after first year.
Power per tone (adjustable): +20 to +44dBm | 0.1W to 25W (Effective June 28, 2018), +30 to +44dBm | 1W to 25W (Units manufactured before June 28, 2018).
Power accuracy (per tone): ± 0.35 dB.

Receiver.
Receive band (100kHz steps): 776 - 787 MHz.
Measurement noise floor: < -130 dBm (-135 dBm, typical).
Measurement range: -55 dBm to -130 dBm.





Standard Calibration $1,250.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the KAELUS IBA-0700HA. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Communication Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Decibel (dB)
A unit of measurement of optical power which indicates relative power. A -10 dB means a reduction in power by 10 times, -20 dB means another 10 times or 100 times overall, -30 means another 10 times or 1000 times overall and so on.

PDH
Plesiochronous Digital Hierarchy (PDH) is a transmission system for voice communication using plesiochronous synchronisation. The transmitter adds dummy information bits to allow multiple channels to be bit interleaved. The receiver discards these bits once the signals have been demultiplexed. PDH combines multiple 2 Mb/s (E1) channels in Europe and 1.544 Mb/s (DS1) channels in the US and Japan.

Spectral Width
Spectral Width is the wavelength interval over which the magnitude of all spectral components is equal to or greater than a specified fraction of the magnitude of the component having the maximum value. In optical communications applications, the usual method of specifying spectral width is the full width at half maximum. This is the same convention used in bandwidth, defined as the frequency range where power drops by less than half (at most -3 dB).


Please contact us for your KAELUS IBA-0700HA CALIBRATION and/or KAELUS IBA-0700HA 776-787 MHz PIM Analyzer REPAIR
