KEYSIGHT N5232B CALIBRATION and KEYSIGHT N5232B REPAIR

A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the KEYSIGHT N5232B Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Network Analyzer, SNA, VNA?
Shop for Comparable Products on our  used Network Analyzer, SNA, VNA page or new Network Analyzer, SNA, VNA page


   KEYSIGHT N5232B   Description / Specification:

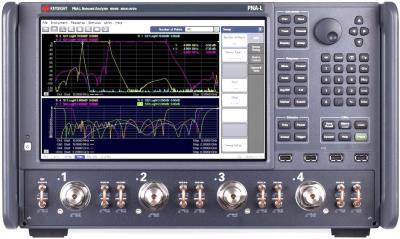

KEYSIGHT N5232B 20 GHz PNA-L Microwave Network Analyzer

The Keysight N5232B PNA-L Microwave Network Analyzer, 300 kHz to 20 GHz, 2 or 4-ports with a single built-in source. It can perform basic analysis of passive components and simple active devices. Measure S-parameters with good accuracy up to 20 GHz.
Specifications.

Maximum System Dynamic Range: 144 dB.
Maximum Receiver Dynamic Range: 134 dB.
Test Ports: 3.5 mm (male), 50 ohm (nominal), 0.002 in. Center Pin Recession (characteristic).

Test Port Output.
Frequency Range: 300 kHz to 20 GHz.
Frequency Resolution: 1 Hz.
Frequency Accuracy: +/- 1 ppm.
Frequency Stability Typical: +/-0.05 ppm, -10° to 70° C.
Maximum Leveled Power: 13 dBm.

Test Port Input.
Maximum Test Port Noise Floor: -120 dBm.
Maximum Direct Receiver Access Input Noise Floor: -133 dBm.

Hardware options.
N5232B-200  2-port base hardware configuration.
N5232B-216  2-port, configurable test set, source attenuators.
N5232B-400  4-port, base hardware configuration.
N5232B-416  4-port, configurable test set, source attenuators.

Software Options with Subscription.
S93007B  Automatic fixture removal.
S93010B  Time-domain analysis.
S93011B  Enhanced time domain analysis with TDR.
S93080B  Frequency-offset measurements.
S93082B  Scalar mixer/converter measurements.
S94601B  Device measurement eXpert - DMX.
S94602B  Limit assistant.
S930900B  Spectrum analysis up to 8.5 GHz.
S930901B  Spectrum analysis up to 13.5 GHz.
S930902B  Spectrum analysis up to 20 GHz.
S93551B  N-port measurements.
S93898B  Built-in performance test software.





Standard Calibration $780.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the KEYSIGHT N5232B. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related RF Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Channel Bandwidth
Channel Bandwidth is the bandwidth over which power is measured. This is usually the bandwidth in which almost all of the power of a signal is contained.

Mismatch Uncertainty
Mismatch Uncertainty is caused by re-reflections between one device (the source) and the device that follows it (the load).

Rise Time
Rise time refers to the time required for a signal to change from a specified low value to a specified high value, usually 10 and 90 percent of pulse-top amplitude (vertical display is linear power).
