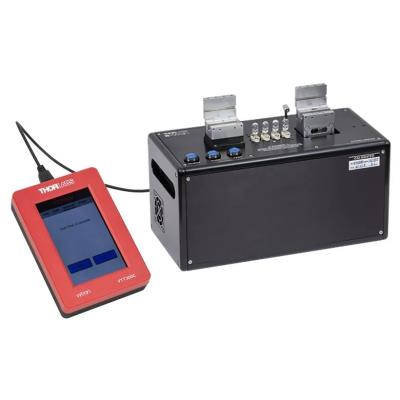

The Thorlabs' PTR306 fiber recoater with automatic recoat injector and linear proof tester offers easy, integrated solutions to recoat and test fusion-spliced fibers. The fiber recoating process restores the buffer coating to a stripped fiber, offering more flexibility than a heat-shrink protection sleeve, enabling it to be handled and coiled without damaging the fusion-spliced section. The integrated linear proof tester allows users to immediately test a recoated fiber with a pre-determined load and determine the long-term reliability of the fiber.
Recoater Specifications:
Recoater Type: Manual
Recoater Mold: Hinged Split Quartz Plates
Recoat Diameter: 280 µm, 430 µm, or 600 µm
Maximum Recoat Length: 50 mm
Recoat Material: High-Index UV Curable Acrylate
UV/Thermal Source: Four 10 W Tungsten-Halogen Lamps
Recoat Injection: Automatic
Recoat Injection Rate: Programmable (≤1.8 µL/s)
Proof Tester Specifications:
Proof Tester Type: Linear
Load Mechanism: 1.5" (38 mm) Linear Fiber Clamp
Minimum Fiber Length: 6" (150 mm)
Maximum Load: 20 N (4.5 lbs)
Ramp Rate: Programmable, ≤22.2 N/s (5 lbs/s)
Hold Time: 0 to 60 s, Programmable
|
