KEYSIGHT N5231B CALIBRATION and KEYSIGHT N5231B REPAIR

A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the KEYSIGHT N5231B Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Network Analyzer, SNA, VNA?
Shop for Comparable Products on our  used Network Analyzer, SNA, VNA page or new Network Analyzer, SNA, VNA page


   KEYSIGHT N5231B   Description / Specification:

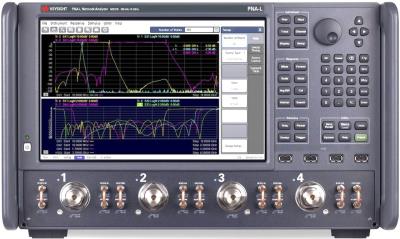

KEYSIGHT N5231B 13.5 GHz PNA-L Microwave Network Analyzer

The Keysight N5231B PNA-L Microwave Network Analyzer, 300 kHz to 13.5 GHz, 2 or 4-ports with a single built-in source. It can perform basic analysis of passive components and simple active devices. Measure S-parameters with good accuracy up to 13.5 GHz.
Specifications.

Maximum System Dynamic Range: 144 dB.
Maximum Receiver Dynamic Range: 134 dB.
Test Ports: 3.5 mm (male), 50 ohm (nominal), 0.002 in. Center Pin Recession (characteristic).

Test Port Output.
Frequency Range: 300 kHz to 13.5 GHz.
Frequency Resolution: 1 Hz.
Frequency Accuracy: +/- 1 ppm.
Frequency Stability Typical: +/-0.05 ppm, -10° to 70° C.
Maximum Leveled Power: 13 dBm.

Test Port Input.
Maximum Test Port Noise Floor: -120 dBm.
Maximum Direct Receiver Access Input Noise Floor: -133 dBm.

Hardware options.
N5231B-200 2-port base hardware configuration.
N5231B-216 2-port, configurable test set, source attenuators.
N5231B-400 4-port, base hardware configuration.
N5231B-416 4-port, configurable test set, source attenuators.

Software Options with Subscription.
S93007B  Automatic fixture removal.
S93010B  Time-domain analysis.
S93011B  Enhanced time domain analysis with TDR.
S93080B  Frequency-offset measurements.
S93082B  Scalar mixer/converter measurements.
S94601B  Device measurement eXpert - DMX.
S94602B  Limit assistant.
S930900B  Spectrum analysis up to 8.5 GHz.
S930901B  Spectrum analysis up to 13.5 GHz.
S93551B  N-port measurements.
S93898B  Built-in performance test software.





Standard Calibration $780.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the KEYSIGHT N5231B. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related RF Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Average Power
Average power means that the energy transfer rate is to be averaged over many periods of the lowest frequency involved. For a CW signal, the lowest frequency and highest frequency are the same, so average power and power are the same. For an amplitude modulated wave, the power must be averaged over many periods of the modulation component of the signal as well.

Harmonic
A harmonic of a wave is a component frequency of the signal that is an integer multiple of the fundamental frequency, i.e. if the fundamental frequency is f, the harmonics have frequencies 2f, 3f, 4f, . . . etc.

Phase Noise
Phase noise is the frequency domain representation of rapid, short-term, random fluctuations in the phase of a waveform, caused by time domain instabilities. Phase noise (L(f)) is typically expressed in units of dBc/Hz, representing the noise power relative to the carrier contained in a 1 Hz bandwidth centered at a certain offsets from the carrier.

Please contact us for your KEYSIGHT N5231B CALIBRATION and/or KEYSIGHT N5231B 13.5 GHz PNA-L Microwave Network Analyzer REPAIR
