KEYSIGHT N5245B CALIBRATION and KEYSIGHT N5245B REPAIR

A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the KEYSIGHT N5245B Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Network Analyzer, SNA, VNA?
Shop for Comparable Products on our  used Network Analyzer, SNA, VNA page or new Network Analyzer, SNA, VNA page


   KEYSIGHT N5245B   Description / Specification:

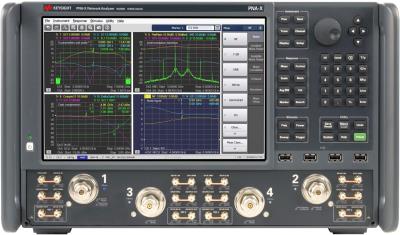

KEYSIGHT N5245B 50 GHz PNA-X Microwave Network Analyzer

The Keysight N5245B 10 MHz to 50 GHz PNA-X microwave network analyzer offers a versatile and fully integrated microwave test engine for measuring active devices such as amplifiers, mixers, and frequency converters. The hardware includes two internal signal sources, a signal combiner, S-parameter and noise receivers, pulse modulators and generators, and a set of switches and RF access points. These hardware features provide a powerful core for a broad range of linear and nonlinear measurements, all with a single set of connections to your device under test
Specifications.

Maximum System Dynamic Range, Opt 201/401: 133 dB (3.2 GHz to 10 GHz, Port 1, 3), 134 dB (1 GHz to 2 GHz, Port 2, 4).
Maximum System Dynamic Range, Opt 21x/41x: 131 dB (1 GHz to 2 GHz, Port 1, 3), 133 dB (1 GHz to 2 GHz, Port 2, 4).
Maximum Receiver Dynamic Range: 129 dB (1 GHz to 10 GHz).
Test Ports: 2.4 mm (male), 50 ohm (nominal), (nominal), 0.002 in. (characteristic).

Test Port Output.
Frequency Range: 10 MHz to 50 GHz, 900 Hz to 50 GHz (Option 425).
Frequency Resolution: 1 Hz.
Frequency Accuracy: ±0.7 ppm.
Initial Frequency Accuracy: ±0.2 ppm.
Frequency Stability Typical: ±0.05 ppm, -10° to 70° C.
Maximum Leveled Power, Opt 201/401: 13 dBm (3.2 GHz to 26.5 GHz, Port 1, 3), 13 dBm (50 MHz to 26.5 GHz, Port 2, 4).

Test Port Input.
Maximum Test Port Noise Floor: -111 dBm (10 GHz to 26.5 GHz).

Hardware options.
N5245B-201  2-port, configurable test set.
N5245B-219  2-port, configurable test set, source attenuators, receiver attenuators, bias tees.
N5245B-217  2-port, configurable test set, source attenuators, receiver attenuators.
N5245B-224  2-port, configurable test set, source attenuators, receiver attenuators, bias tees, second source, combiner, mechanical switches.
N5245B-401  4-port, configurable test set, second source.
N5245B-417  4-port, configurable test set, second source, source attenuators, receiver attenuators.
N5245B-419  4-port, configurable test set, second source, source attenuators, receiver attenuators, bias tees.
N5245B-422  4-port, configurable test set, second source, source attenuators, receiver attenuators, combiner, mechanical switches.
N5245B-423  4-port, configurable test set, second source, source attenuators, receiver attenuators, bias tees, combiner, mechanical switches.
N5245B-425  4-port, configurable test set, second source, attenuators, combiner, mechanical switches, bias tees, low frequency extension.
