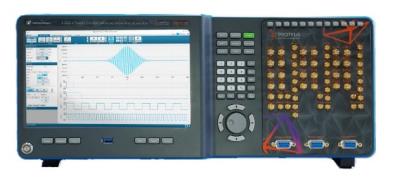

The Tabor Electronics P9482B Arbitrary Waveform Generator is ideal for applications in Quantum Computing, Electronic Warfare, Radar, and next generation communications such as 5G, 6G, Ultrawide Bandwidth, Wi-Fi 6, 7, and more. Built on the latest RF DAC and RF ADC technology, this product has a max sample rate of 9GS/s that allows for multiple Nyquist zone operation, providing frequency ranges more than 10GHz. It has an innovative task-oriented programming and signal processing environment. When used in combination with its optional RF Digitizer it becomes an Arbitrary Waveform Transceiver, able to change waveforms in real-time; making it ideal for improving the coherence time of a Qubit, characterizing an RF amplifier, or responding to an Electronic Warfare threat.
Specifications:
Number of channels: 2
Memory: 8 GS
Max sample rate: 9G/s
Output instantaneous bandwidth: 4.5 GHz
Resolution: 16-bit
DC output voltage window: ±1.15 V
DC output amplitude accuracy: ±(3% + 2 mV)
DC output max usable frequency: 4.5 GHz
Direct output amplitude accuracy: ±(3% + 2 mV)
Direct output max usable frequency: 10 GHz
Number of markers: 8
Marker voltage window: ±1.15 V
Marker amplitude accuracy: ±7%
Marker resolution: 8 pts
Marker coarse delay range: 0 to 2048 pts
Marker fine delay range: 0 to 1.2 ns
Trigger input range: -5 V to +5 V
Trigger input sensitivity: 200 mV
Trigger max toggle frequency: 10 MHz
Trigger minimum pulse width: 50 ns
Sync clock frequency: SCLK/8
Digitizer max sampling rate: 5.4G/s single channel mode, 2.7G/s dual channel mode
|
