   GENERAL PHOTONICS CORP. ERM-202-2-13/15-FC   Description / Specification:

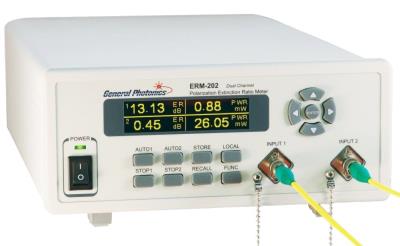

GENERAL PHOTONICS CORP. ERM-202-2-13/15-FC 2-Ch Polarization Extinction Ratio Meter

The General Photonics ERM-202-2-13/15-FC is a dual channel polarization extinction ratio (PER) meter specifically designed to simultaneously measure the PER and power ratio of a device with two polarization maintaining (PM) outputs, such as a Y-branch fiber gyro IOC, PM coupler (PMC), or polarization beam splitter (PBS), as well as evaluate the performance (output DOP) of depolarizers. An analog electrical PER output for each channel is provided. The instrument possesses a bright OLED display and has 4 different measurement speeds, allowing for high and low speed applications. Axis angle, power ratios, and optical power are automatically measured and displayed on the OLED screen, and can also be stored to be recalled later. The ERM-202 is ideal for PM fiber pigtailing of modulators, waveguides, and laser diodes, as well as for PMC and PBS manufacturing, PM fiber connectorization, depolarizer characterization, PM fiber fusion splicing, PM fiber coil production and quality assurance for fiber gyros.

Specifications:
Operating Wavelength Range: 1260 to 1620 nm
PER Dynamic Range: >50 dB
PER Range: -25 to 10 dBm
Input Optical Power Range: -30 to 10 dBm
PER Resolution: 0.1 dB
PER Accuracy: ±0.15 dB (ER <30 dB)
Angular Resolution: 0.06°
Angular Accuracy: ±1°
Power Measurement Accuracy: ±0.5 dB
Power Resolution: 0.02 dB to 0.2 dB
Measurement Speeds: 0.1 to 1 seconds
Connector Type: FC connector
Connection Interfaces: USB, RS-232, Ethernet, and GPIB
Analog Output: 0 to 5 V
