TABOR P9488B CALIBRATION and TABOR P9488B REPAIR


A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the TABOR P9488B Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Function Generator?
Shop for Comparable Products on our
 used Function Generator page or new Function Generator page


   TABOR P9488B   Description / Specification:

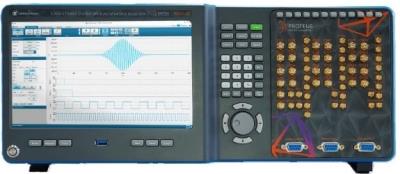

TABOR P9488B Arbitrary Waveform Generator

The Tabor Electronics P9488B Arbitrary Waveform Generator is ideal for applications in Quantum Computing, Electronic Warfare, Radar, and next generation communications such as 5G, 6G, Ultrawide Bandwidth, Wi-Fi 6, 7, and more. Built on the latest RF DAC and RF ADC technology, this product has a max sample rate of 9GS/s that allows for multiple Nyquist zone operation, providing frequency ranges more than 10GHz. It has an innovative task-oriented programming and signal processing environment. When used in combination with its optional RF Digitizer it becomes an Arbitrary Waveform Transceiver, able to change waveforms in real-time; making it ideal for improving the coherence time of a Qubit, characterizing an RF amplifier, or responding to an Electronic Warfare threat.

Specifications:
Number of channels: 8
Memory: 8 GS
Max sample rate: 9G/s
Output instantaneous bandwidth: 4.5 GHz
Resolution: 16-bit

DC output voltage window: ±1.15 V
DC output amplitude accuracy: ±(3% + 2 mV)
DC output max usable frequency: 4.5 GHz

Direct output amplitude accuracy: ±(3% + 2 mV)
Direct output max usable frequency: 10 GHz

Number of markers: 16
Marker voltage window: ±1.15 V
Marker amplitude accuracy: ±7%
Marker resolution: 8 pts
Marker coarse delay range: 0 to 2048 pts
Marker fine delay range: 0 to 1.2 ns

Trigger input range: -5 V to +5 V
Trigger input sensitivity: 200 mV
Trigger max toggle frequency: 10 MHz
Trigger minimum pulse width: 50 ns

Sync clock frequency: SCLK/8
Digitizer max sampling rate: 5.4G/s single channel mode, 2.7G/s dual channel mode







Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

dBm
dBm (sometimes dBmW) is an abbreviation for the power ratio in decibels (dB) of the measured power referenced to one milliwatt (mW). Zero dBm equals one milliwatt. A 3 dB increase represents roughly doubling the power, a 3 dB decrease, the power is reduced by about one half.

Millimeter-wave
Millimeter-wave is a term that generally refers to frequencies of 26.5 GHz and above. That is where signal wavelengths fall below approximately 10 mm, and thus the terminology changes from centimeters to millimeters.

Power Repeatability
Power Repeatability is the random uncertainty in reproducing the power level after changing and re-setting the power level. The power repeatability is ± half the span (in dB) between the highest and lowest actual power. Note: - The long-term power repeatability can be obtained by taken the power repeatability and power stability into account.

Stability
Stability is the extent to which a specified property, characteristic, or parameter of a substance, device, or apparatus, remains fixed with the passage of time or with varying environmental conditions.
