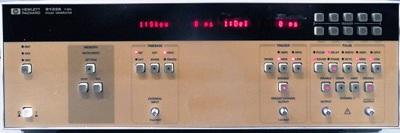

The HP 8133A Timing Generator has high resolution, very low jitter and very fast, linear transitions typically < 60 ps. When several channels must be stimulated at the same time in order to perform a measurement, Multi-channel accessory kits allow two or three HP 8133As to be master/slaved for up to six-channel operation. To investigate pattern effects or to make rapid performance checks using eye-pattern technique with the HP 54120 series oscilloscope, the HP 8133A can be fitted with a pulse/data channel in place of the second pulse channel. This supports 32-bit patterns and the CCITT 0.151 2^23-1 prbs. Specifications. Timing Frequency: 33.0 MHz to 3.0000 GHz, 100 KHz resolution. Timing Period: 300 ps to 30.000 ns, 1 ps resolution. Timing Accuracy: ±0.5 %, ±0.1 % nominal. Pulse Channel(s) Square Mode (50% duty cycle) Delay: 0.000 to 10.000 ns ( - 5.000 to + 15.000 ns in Channel 1 if Opt 001, 002, or 003 used). Pulse Mode Delay: No variation ( - 5.000 to + 5.000 ns in Channel 1 if Opt 001, 002, or 003 used). Pulse Mode Width: 150 ps to 10.000 ns (max: period - 150 ps). Pulse Mode Duty cycle: 0.0 to 100.0%, 0 and 100% mean dc at outputs. Accuracy: Typically 30 ps. Delay Drift Against Delay: 50 ps. Phase: - 360.0 to + 360.0°, subject to delay limits. Outputs, Channels 1 and 2 and (Trigger Output) Amplitude: 0.30 to 3.00 V p-p (0.5 to 1.80 V p-p). Level window: - 2.00 to + 4.00 V ( - 4.00 to + 4.00 V). Transition times 10% to 90% of amplitude: < 100 ps, 60 ps nominal. Transition times 20% to 80% of amplitude: <60 ps, 40 ps nominal (<100 ps). Opt 001 Delay Channel 1. Opt 002 Pulse/Data Channel 2. Opt 003 Pulse Channel 2.
|
