Keysight (Agilent) 8449B CALIBRATION and Keysight (Agilent) 8449B REPAIR

A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the Keysight (Agilent) 8449B Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another RF Amplifier?
Shop for Comparable Products on our  used RF Amplifier page


   Keysight (Agilent) 8449B   Description / Specification:

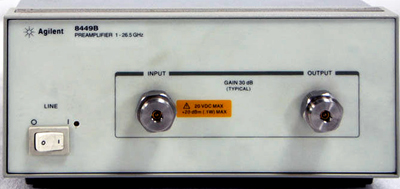

Keysight (Agilent) 8449B 26.5 GHz High-gain, Low-noise Preamplifier

The HP 8449B 1 to 26.5 GHz high-gain, low-noise preamplifier increases the sensitivity of any microwave spectrum analyzer, enabling you to detect and analyze very low-level signals in dramatically reduced measurement time. The improved sensitivity lets you widen bandwidths and measure low-level signals using much shorter sweep limes. Specifications. Frequency range: 1.0 - 26.5 GHz. Maximum safe input power: +20 dBm. Maximum dc input: +20 Vdc. Gain compression: < 1 dB for signals <= +7 dBm at the output (characteristic). Gain: > 26 dB (20-30° C); 30 dB (20-30° C) ; > 23 dB (0-55° C). Noise figure: < 8.5 dB (1.0 - 12.7 GHz), < 12.5 dB (12.7 - 22.0 GHz), < 14.5 dB (22.0 - 26.5 GHz). Third-order intercept: + 15 dBm at the output (characteristic). Second harmonic intercept: + 30 dBm at the output (characteristic). RF input/output: APC-3.5 (m) , 50-ohm (nominal). Reverse isolation: > 75 dB.





Standard Calibration $445.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the Keysight (Agilent) 8449B. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related RF Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Channel Bandwidth
Channel Bandwidth is the bandwidth over which power is measured. This is usually the bandwidth in which almost all of the power of a signal is contained.

Mismatch Uncertainty
Mismatch Uncertainty is caused by re-reflections between one device (the source) and the device that follows it (the load).

Rise Time
Rise time refers to the time required for a signal to change from a specified low value to a specified high value, usually 10 and 90 percent of pulse-top amplitude (vertical display is linear power).

Please contact us for your Keysight (Agilent) 8449B CALIBRATION and/or Keysight (Agilent) 8449B 26.5 GHz High-gain, Low-noise Preamplifier REPAIR
