Keysight (Agilent) 85110L CALIBRATION and Keysight (Agilent) 85110L REPAIR

A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the Keysight (Agilent) 85110L Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another S-Parameter Test Set?
Shop for Comparable Products on our
 used S-Parameter Test Set page

   Keysight (Agilent) 85110L   Description / Specification:

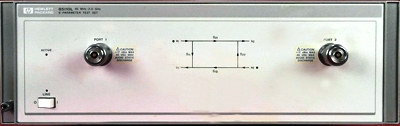

Keysight (Agilent) 85110L S-Parameter Test Set

45 MHz to 2 GHz, Pulsed-RF S-Parameter Test Set, Four 90 dB step attenuators protect each input of the fundamentally-mixed down converter to allow measurement of test devices with output power of 50W CW. For use in pulsed-RF measurement systems. Test Ports (Front Panel): Connector Type: 7mm, Impedance: 50 ohms nominal, Incident signal attenuation rane: 0 to 70 dB in 10 dB steps, Damage input level: >+20 dBm CW RF, Nominal operating power level: 0.045 to 2 GHz, 0 dBm, Nominal connector nut size: 20 mm, Recommended torque: 136 Ncm (12 in-lb). RF Connectors (Rear Panel): Connector Type: SMA female, RF source power level: Damange input level: >+23 dBm, Minimum: 0 dBm, Maximum, +14 dBm, Nominal operating level: +6 dBm to +9 dBm, Nominal connector nut size: 8mm, Recommended torque: SMA: 56 Ncm (5 in-lb), Lo Source Power Level: Minimum: +7 dBm, Maximum: +13 dBm, Test Ports (Front Panel): Nominal: +10 dBm, Low Power Out: Damage input level: >+20 dBm CW RF


Standard Calibration $430.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the Keysight (Agilent) 85110L. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.

Related RF Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Average Power
Average power means that the energy transfer rate is to be averaged over many periods of the lowest frequency involved. For a CW signal, the lowest frequency and highest frequency are the same, so average power and power are the same. For an amplitude modulated wave, the power must be averaged over many periods of the modulation component of the signal as well.

A harmonic of a wave is a component frequency of the signal that is an integer multiple of the fundamental frequency, i.e. if the fundamental frequency is f, the harmonics have frequencies 2f, 3f, 4f, . . . etc.

Phase Noise
Phase noise is the frequency domain representation of rapid, short-term, random fluctuations in the phase of a waveform, caused by time domain instabilities. Phase noise (L(f)) is typically expressed in units of dBc/Hz, representing the noise power relative to the carrier contained in a 1 Hz bandwidth centered at a certain offsets from the carrier.

Please contact us for your Keysight (Agilent) 85110L CALIBRATION and/or Keysight (Agilent) 85110L S-Parameter Test Set REPAIR
