Keysight (Agilent) 8591A REPAIR and Keysight (Agilent) 8591A CALIBRATION


Custom-Cal has a high success rate in the repair of the Keysight (Agilent) 8591A. A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the Keysight (Agilent) 8591A Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another RF Spectrum Analyzer?
Shop for Comparable Products on our
 used RF Spectrum Analyzer page or new RF Spectrum Analyzer page


   Keysight (Agilent) 8591A   Description / Specification:

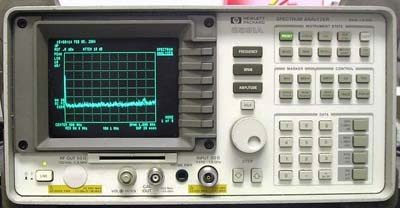

Keysight (Agilent) 8591A 1.8 GHz High Performance RF Spectrum Analyzer

The HP 8591A High performance portable Spectrum Analyzer offers frequency accuracy and a wide range of options for applications that demand higher performance. The HP 8591A has a frequency range of 9 kHz to 1.8 GHz and amplitude range of -115 to + 30 dBm. An internal preselector, and an amplitude range of -114 to + 30 dBm. It has standard 7.5 ppm frequency accuracy that can be improved with an optional precision frequency reference to marker count accuracy of ± 230 Hz at 1 GHz or ± 2.3 kHz at 18 GHz. The HP 8591A comes with a built-in memory card reader that enables you to load HP's custom measurement personalities and measurement data into the spectrum analyzer using 32-Kbyte memory cards. A catalog function allows you to determine the exact content of information stored on your memory cards or within internal memory. Specifications. Frequency range: 9 kHz to 1.8 GHz, 1 MHz to 1.8 GHz (opt 001). Span range: 0 Hz (zero span), 10 kHz to 1.8 GHz. Span accuracy: Span = 10 MHz: ±2% of span, Span > 10 MHz: ±3%. Sweeptime Range: Span = 0 Hz or > 10 kHz: 20 ms to 100 s. Sweeptime Accuracy: 20 ms to 100 s: ±3%. Amplitude range: -115 to +30 dBm. Displayed average noise level: <= -115 to <= -113 dBm. Resolution bandwidth: 1 kHz to 3 MHz, ±20%; 9 kHz and 120 kHz (6 dB). Video bandwidth range: 30 Hz to 1 MHz. Built-in memory card reader. Options. 001: 75 ohm Input. 004: Precision Frequency Reference. 010: 50 ohm Built-in Tracking Generator. 011: 75 ohm Built-in Tracking Generator. 021: HP-IB Interface. 023: RS-232 Interface. 101: Fast Time Domain Sweeps. 102: AM/FM Demodulator and TV Sync Trigger. 103: Quasi-Peak Detector/AM-FM Demodulator. 105: Time-gated Spectrum Analysis. 301: TV Sync Trigger.





Standard Calibration $350.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the Keysight (Agilent) 8591A. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related RF Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Available Gain
Available Gain is the ratio, at a specific frequency, of power available from the output to the power in from the source.

Frequency Span
Frequency Span specifies the range between the start and stop frequencies, also referred to as bandwidth

Peak Envelope Power
Peak envelope power is the maximum value of the envelope power. Envelope power is measured by making the averaging time much less than 1/fm where fm is the maximum frequency component of the modulation waveform. The averaging time is therefore limited on both ends: (1) it must be small compared to the period of the highest modulation frequency, and (2) it must be large enough to be many RF cycles long.


Please contact us for your Keysight (Agilent) 8591A REPAIR and/or Keysight (Agilent) 8591A 1.8 GHz High Performance RF Spectrum Analyzer CALIBRATION
