Keysight (Agilent) 8722D REPAIR and Keysight (Agilent) 8722D CALIBRATION

Custom-Cal has a high success rate in the repair of the Keysight (Agilent) 8722D. A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the Keysight (Agilent) 8722D Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Network Analyzer, SNA, VNA?
Shop for Comparable Products on our
 used Network Analyzer, SNA, VNA page or new Network Analyzer, SNA, VNA page

   Keysight (Agilent) 8722D   Description / Specification:

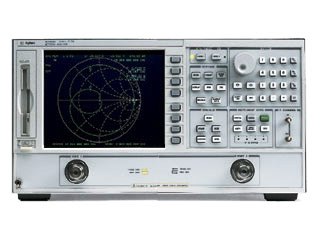

Keysight (Agilent) 8722D Vector Network Analyzer

The HP 8722D vector network analyzers offer builtin source, receiver, and solid-state switching S-parameter test set covering frequencies from 50 MHz to 40 GHz. They have a fast source that is fully synthesized, in both swept or stepped modes, with stability and accuracy within 10 ppm (typical). Frequency resolution is 1 Hz standard for accurate measurements of narrowband or long-delay devices. The tuned receivers with variable bandwidth IF filters provide up to 105 dB of dynamic range. A solid-state switching test set provides continuous updating of all four S-parameters as required for two-port error correction. Frequency Range: 50 MHz to 40 GHz. Frequency Resolution: 1 Hz. Frequency Accuracy: 10 ppm. Maximum Source Power: -5 dBm, < 20 GHz; -10 dBm, 20 to 40 GHz (std), 0 dBm, < 20 GHz; -5 dBm, 20 to 40 GHz (Option 007). Minimum Source Power: -75 dBm (std), -70 dBm (Option 007). Power Resolution: 0.01 dB. Power Flatness: ± 2 dB. Power Sweep Range: 15 dB. System Dynamic Range (>2 GHz): 82 to 93 dB, 86 to 98 dB (Option 007). Test Port Connector 2.4 mm. Options: 007, Mechanical Transfer Switch. 010, Time Domain Capability. 012, Direct Sampler Access. 085, High-Power Test Set. 089, Frequency Offset Mode. 1D5, High-Stability Frequency Reference. 400, Four-Sampler Test Set.


Standard Calibration $400.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the Keysight (Agilent) 8722D. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.

Related RF Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Averaging is a mathematical process to reduce the variation in a measurement by summing the data points from multiple measurements and dividing by the number of points summed.

Jitter in technical terms is the deviation in or displacement of some aspect of the pulses in a high-frequency digital signal. Jitter is the time variation of a periodic signal in electronics and telecommunications, often in relation to a reference clock source. Jitter may be observed in characteristics such as the frequency of successive pulses, the signal amplitude, or phase of periodic signals. Jitter is a significant, and usually undesired, factor in the design of almost all communications links (e.g., USB, PCI-e, SATA, OC-48). In clock recovery applications it is called timing jitter.

Pulse Power
Pulse Power, the energy transfer rate is averaged over the pulse width. Pulse width is considered to be the time between the 50 percent risetime/falltime amplitude points. Pulse power averages out any aberrations in the pulse envelope such as overshoot or ringing.

Please contact us for your Keysight (Agilent) 8722D REPAIR and/or Keysight (Agilent) 8722D Vector Network Analyzer CALIBRATION
