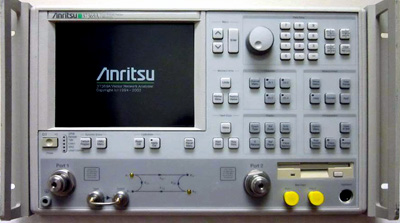

The Anritsu 37369A is a microprocessor controlled Vector Network Analyzer. It integrates a synthesized source, S-parameter test set and tuned receiver into a single compact package that is ideal for bench-top testing. It provides: 40 MHz to 40 GHz, Fast Sweeping Synthesized Source, Auto Reversing Test Set, Solid-State Transfer Switch, Four Independent Displays, Internal Hard and Floppy Disk Drives, LRL/LRM Calibration, Adapter Removal Calibrations and Fast Measurement Throughput via GPIB. Specifications. Frequency Range: 40 MHz to 40 GHz. Dynamic Range (“Receiver Dynamic Range” is defined as the ratio of the maximum signal level at Port 2 for 0.1 dB compression to the noise floor at Port 2.; “System Dynamic Range” is defined as the ratio of the power incident on Port 2 in a through line connection to the noise floor at Port 2 (forward measurements only). 10 Hz IF bandwidth and 512 averages were used in calibration and measurement.) Max Signal Into Port 2: 30 dBm. Noise Floor: -65 dBm @ 0.04 GHz, -83 dBm @ 40 GHz, Max. -93 dBm @ 2 GHz. Receiver Dynamic Range: 100 @ 0.04 GHz, 123 @ 40 GHz, Max. 128 @ 2 GHz. Port 1 Power: 5 dBm @ 0.04 GHz, -7 dBm @ 40 GHz. System Dynamic Range: 58 @ 0.04 GHz, 76 @ 40 GHz, Max. 86 @ 2 GHz. High Level Noise (typical): <0.04 dB and <0.5 peak-to-peak variation in a 1 kHz IF bandwidth up to 20 GHz. <0.08 dB and <1.0 peak-topeak variation up to 40 GHz. Measurement Time vs. Span for 101 Data Points (typical): 40 MHz to 40 GHz, 500 ms. Number of Channels: Four independent measurement channels. Parameters: S11, S21, S22, S12, or user-defined combinations of a1, a2, b1, and b2. All measurements are made without the need to manually reverse the test device. Display LCD, Color, 8.5-inch diagonal. Options. Opt 1, Slide Rack Mounting. Opt. 1A, Rack Mounting. Opt 2, High Speed Time (Distance) Domain Measurement Capability. Opt 4, External SCSI-2 Hard Disk Drive Compatibility. Opt 7A/N/NF/S/K, Universal Test Port Configuration, Replaces Universal / K Connector (standard) with: 7A - Universal / GPC-7, 7N - Universal / N, male, 7NF - Universal / N, female, 7S - Universal / 3.5 mm, male. Opt 10A, High Stability Time Base.
|
