BURLEIGH WA-2500 CALIBRATION and BURLEIGH WA-2500 REPAIR

A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the BURLEIGH WA-2500 Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Wavelength Meter?
Shop for Comparable Products on our  used Wavelength Meter page


   BURLEIGH WA-2500 (WA2500)   Description / Specification:

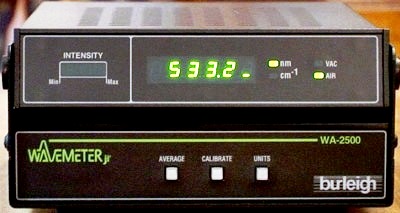

BURLEIGH WA-2500 Wavemeter Jr Wavelength Meter

The Burleigh WA-2500 Wavemeter Jr is an instrument for wavelength measurement of CW laser sources that combines accuracy with ease of use. The accuracy is +/- 1 part in 10,000 over the full wavelength range. The primary application for Model WA-2500 is measurement of the wavelength or the frequency of tunable lasers that operate from 400 to 1800 nanometers, particularly dye lasers, Ti:Sapphire lasers and diode lasers. Two detectors are provided to cover this range with high sensitivity. The VIS detector is used for lasers operating from 400 to 1100 nanometers, and the IR detector for lasers that operate from 600 to 1800 nanometers. Specifications. Wavelength Range: 400 - 1800 nm. Accuracy: 1 part in 10,000, at 1000 nm: 0.1 nm (1 cm^-1). Display Resolution(Display resolution is adjusted automatically depending on the linewidth of the measured light.): 0.01 nm (0.1 cm^-1). Display Units: Nanometers or wavenumbers in vacuum or air. Display Update Period: Normal Mode; 0.2 seconds, Average Mode 2 seconds. Input Power (Input power requirement is specified as power out of the fiber and into the instrument. For a collimated beam with a diameter 2.5 mm, coupling into the standard beam receiver is usually greater than 30%.): 20 microwatts. Beam Receiver Accessory: Coupling Head Aperture; 2.5 millimeter, Patch cord Cable Length; 3 meters. RS-232 Interface Standard (2400 Baud).





Standard Calibration $595.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the BURLEIGH WA-2500. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Optical Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

dBm
Optical power referenced to 1 millimatt

Multimode Fiber
Multimode Fiber has a large core (almost always 62.5 microns - a micron is one one millionth of a meter - but sometimes 50 microns) and is used with LED sources at wavelengths of 850 and 1300 nm for short distance, lower speed networks like LANs. Both multimode and singlemode fiber have an outside diameter of 125 microns - about 5 thousandths of an inch - just slightly larger than a human hair.

Power Repeatability
Power Repeatability is the random uncertainty in reproducing the power level after changing and re-setting the power level. The power repeatability is ± half the span (in dB) between the highest and lowest actual power. Note: - The long-term power repeatability can be obtained by taken the power repeatability and power stability into account.

Refractive Index
The refractive index or index of refraction of a substance is a measure of the speed of light in that substance. It is expressed as a ratio of the speed of light in vacuum relative to that in the considered medium. The velocity at which light travels in vacuum is a physical constant, and the fastest speed at which energy or information can be transferred. However, light travels slower through any given material, or medium, that is not vacuum.

Total insertion loss
A measure of the loss of light within an optical component


Please contact us for your BURLEIGH WA-2500 CALIBRATION and/or BURLEIGH WA-2500 Wavemeter Jr Wavelength Meter REPAIR
