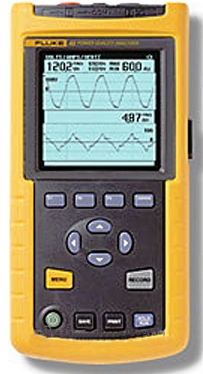

The Fluke 43 Power Quality Analyzer performs the measurements you need to maintain power systems, troubleshoot power problems and diagnose equipment failures. All in a rugged handheld package. Specifications. Voltage ranges (auto): 5.000 V to 500.0 V, 1250 V ±(1 % + 10 counts). Current ranges (auto): 50.00 A to 500.0 kA, 1250 kA ±(1 % + 10 counts). Frequency range: 10.0 Hz to 15.0 kHz; 40.0 to 70.0 Hz ±(0.5 % + 2 counts). Power Readings: Watt, VA, VAR, PF, DPF, Hz. Number of harmonics: DC..21, DC..33, DC..51. Sags and Swells Recording times (selectable): 4 minutes to 8 days, endless (16 days). Detection of voltage transients: > 40 ns. Inrush Current ranges (selectable): 1 A, 5 A, 10 A, 50 A, 100 A, 500 A, 1000 A. Scope Horizontal Time base modes (selectable): Normal, Single, Roll. Ranges (selectable within modes): In Normal (5 s to 20 ns/div), In Single shot (5 s to 1 µs/div), In Roll mode (60 s to 1 s/div). Time base error: < ±(0.4 % + 1 pixel). Vertical Voltage ranges: 5.0 mV/div to 500 V/div. Meter; Ohm Ranges: 500.0 ohm to 5.000 M-ohm, 30.00 M-ohm ±(0.6 % + 5 counts). Diode Accuracy: ±(2 % +5 counts). Continuity Beep: < 30 ohm (± 5 ohm). Capacitance Ranges: 50.00 nF to 500.0 mF ±(2 % +10 counts). Temperature Ranges (°C or °F): -100.0 to +400.0 °C or -200.0 to +800.0 °F ±(0.5 % + 5 counts). Record times (selectable): 4 min to 8 days, endless (16 days). Display Useful screen area: 72 x 72 mm (2.83 x 2.83 in).
|
