FLUKE 179 CALIBRATION and FLUKE 179 REPAIR

A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the FLUKE 179 Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Multimeter DMM?
Shop for Comparable Products on our  used Multimeter DMM page


   FLUKE 179   Description / Specification:

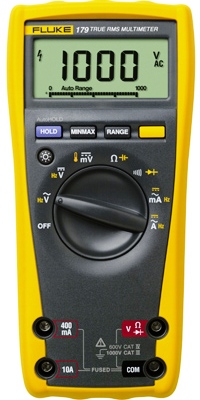

FLUKE 179 Handheld True RMS Digital Multimeter with Temperature

The Fluke 179 True RMS digital multimeter gives you voltage and current measurements, 6000-count resolution, manual and automatic ranging and provide frequency, capacitance, resistance, continuity, diode measurements and temperature measurements. It includes a digital display with analog bar graph and backlight. Specifications. Voltage DC: Accuracy ± (0.09%+2), Max. Resolution 0.1 mV, Maximum 1000 V. Voltage AC: Accuracy ± (1.0%+3), Max. Resolution 0.1 mV, Maximum 1000 V. Current DC: Accuracy ± (1.0%+3), Max. Resolution 0.01 mA, Maximum 10 A. Current AC: Accuracy ± (1.5%+3), Max. Resolution 0.01 mA, Maximum 10 A. Resistance: Accuracy ± (0.9%+1), Max. Resolution 0.1 ohm, Maximum 50 M-ohm. Capacitance: Accuracy ± (1.2%+2), Max. Resolution 1 nF, Maximum 10,000 µF. Frequency: Accuracy ± (0.1%+1), Max. Resolution 0.01 Hz, Maximum 100 kHz. Temperature: Accuracy ± (1.0%+10), Max. Resolution 0.1°C, Range -40°C / 400°C.





Standard Calibration $95.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the FLUKE 179. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Clipping
Clipping is the limiting of a signal so that it never exceeds some threshold.

Line Regulation
Line regulation is the capability to maintain a constant output voltage level on the output channel of a power supply despite changes to the input voltage level.

Peak Envelope Power
Peak envelope power is the maximum value of the envelope power. Envelope power is measured by making the averaging time much less than 1/fm where fm is the maximum frequency component of the modulation waveform. The averaging time is therefore limited on both ends: (1) it must be small compared to the period of the highest modulation frequency, and (2) it must be large enough to be many RF cycles long.

RMS
RMS or root mean square is a statistical measure of the magnitude of a varying quantity

Please contact us for your FLUKE 179 CALIBRATION and/or FLUKE 179 Handheld True RMS Digital Multimeter with Temperature REPAIR
