FLUKE 8508A REPAIR and FLUKE 8508A CALIBRATION

Custom-Cal has a high success rate in the repair of the FLUKE 8508A. A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the FLUKE 8508A Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Multimeter DMM?
Shop for Comparable Products on our  used Multimeter DMM page


   FLUKE 8508A   Description / Specification:

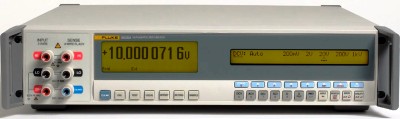

FLUKE 8508A 8.5 digit Reference Multimeter

The Fluke 8508A reference multimeter is designed specifically for metrology applications. The 8508A replaces the former Wavetek 1281. The 8508A features 8.5 digit resolution, high linearity, and low noise. Additionally, the 8508A demonstrates high stability, possessing a 365 day stability as low as 2.7 ppm, and a 24 hour stability as low as 0.5 ppm.

Specifications.
DC Voltage Range: 0 to ± 1050 V
DC Voltage 365 Day Stability: 3 ppm

AC Voltage Range: 2 mV to 1050 V
AC Voltage Frequency Range: 1 Hz to 1 MHz
AC Voltage 365 Day Stability: 65 ppm

DC Amperage Range: 0 to ± 20 A
DC Amperage 365 Day Stability: 12 ppm

AC Amperage Range: 2 µA to 20 A
AC Amperage Frequency Range: 1 Hz to 100 kHz
AC Amperage 365 Day Stability: 250 ppm

Resistance Range: 0 to 20 GΩ
Resistance 365 Day Stability: 7.5 ppm

Temperature Range: -200 °C to ± 660 °C
Temperature 365 Day Stability: 2.5 m°C





Standard Calibration $825.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the FLUKE 8508A. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Available Gain
Available Gain is the ratio, at a specific frequency, of power available from the output to the power in from the source.

Decibel (dB)
A unit of measurement of power which indicates relative power. A -10 dB means a reduction in power by 10 times, -20 dB means another 10 times or 100 times overall, -30 means another 10 times or 1000 times overall and so on.

Mismatch Uncertainty
Mismatch Uncertainty is caused by re-reflections between one device (the source) and the device that follows it (the load).

Pulse Power
Pulse Power, the energy transfer rate is averaged over the pulse width. Pulse width is considered to be the time between the 50 percent risetime/falltime amplitude points. Pulse power averages out any aberrations in the pulse envelope such as overshoot or ringing.

Please contact us for your FLUKE 8508A REPAIR and/or FLUKE 8508A 8.5 digit Reference Multimeter CALIBRATION
