Used OPHIR 4010RE Buy / Purchase at the right Price.
Custom-Cal has a used OPHIR 4010RE 300 Watt Linear Power RF Amplifier in stock and ready for purchase at a fair price. All units sold by Custom-Cal are provided with an applicable NIST traceable calibration/performance verification and a 90 day warranty (unless otherwise noted). With this added service, you can be confident that you are buying a fully functional unit that meets OEM specifications.

We are always willing to work with the customer on price. If you would like to buy a used OPHIR 4010RE but, don't see the price you want, please name your price below and we will try to find one for you to purchase.

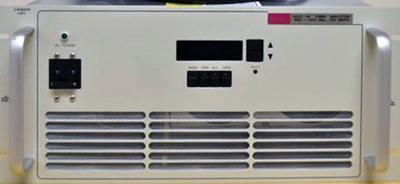

OPHIR 4010RE 300 Watt Linear Power RF Amplifier


General description of the used OPHIR 4010RE for sale.
The Ophir 4010RE is a 300 Watt band-specific amplifier that covers the 800 – 1000 MHz frequency range. This small and lightweight amplifier utilizes Class A/AB linear power devices that provide an excellent 3rd order intercept point, high gain, and a wide dynamic range. This amplifier achieves high efficiency operation with proven reliability. Specifications. Frequency Range: 800 – 1000 MHz. Saturated Output Power: 300 Watts typical. Power Output @ 1dB Comp.: 150 Watts min. Small Signal Gain: +56 dB min. Small Signal Gain Flatness: + 1.5 dB max. IP3: +58 dBm typical. Input VSWR: 2:1 max. Harmonics: -20 dBc typical @ 150 Watts. Spurious Signals: > -60 dBc @ 150 Watts. Input/Output Impedance: 50 Ohms nominal. RF Input: 0 dBm max. RF Input Signal Format: CW/AM/FM/PM/Pulse. Class of Operation: AB. Rear Panel Connectors with Control Option.

  Spec Sheet     Stock Photo

Unfortunately, the instrument you wanted to buy has recently been sold.
But, if you fill out the form below, we will get back to you with availability and price.
Please check the similar instruments available for purchase below.



Similar Instruments Available for Purchase. Please follow links for more information and price.

 ManufacturermodelInstrument TypeOEM NameStarting Price
Price and InfoAGILENT465ARF AmplifierRF AmplifierBuy it Now Price $500.00
Price and InfoAGILENT8447ARF AmplifierPreamplifierBuy it Now Price $1,000.00

Contact us to buy used OPHIR 4010RE at the Purchase Price you want.
