Used AGILENT 8447D Buy / Purchase at the right Price.
Custom-Cal has a used AGILENT 8447D 1.3 GHz Broadband Preamplifier in stock and ready for purchase at a fair price. All units sold by Custom-Cal are provided with an applicable NIST traceable calibration/performance verification and a 90 day warranty (unless otherwise noted). With this added service, you can be confident that you are buying a fully functional unit that meets OEM specifications.

We are always willing to work with the customer on price. If you would like to buy a used AGILENT 8447D but, don't see the price you want, please name your price below and we will try to find one for you to purchase.

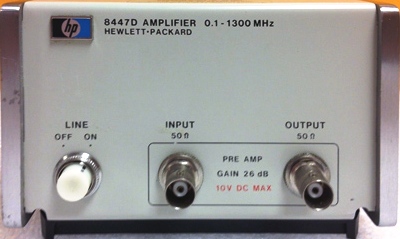

AGILENT 8447D 1.3 GHz Broadband Preamplifier


General description of the used AGILENT 8447D for sale.
The HP 8447D 1.3 GHz low-noise, high-gain amplifier has many general-purpose uses. They improve the sensitivity of spectrum analyzers, counters, RF voltmeters. EMI meters, power meters, and other devices. They will also increase the maximum power avai lable from a signal generator or sweeper. Specifications. Frequency Range: 100 kHz to 1.3 GHz. Typical 3 dB Bandwidth: 75 kHz to 1.7 GHz. Gain (Mean): > 25 dB. Gain Flatness Across Full Frequency Range: ±1.5 dB. Noise Figure: <8.5 dB. Output Power for 1 dB Gain Compression: >+7dBm typical. Harmonic Distortion: -30 dB for 0 dBm output. Output for < -60 dB Harmonic Distortion: -30 dBm. VSWR: < 2.0 input, < 2.2 output 1 to 1300 MHz. Impedance: 50 ohm. Reverse Isolation: > 40 dB. Maximum DC Voltage Input: ±10 V. Options. Option 010: Single-Channel Amplifier, N (f) Connectors. Option 001: Dual-Channel Amplifier, BNC (f) Connectors. Option 011: Dual-Channel Amplifier, N (f) Connectors.

       Stock Photo

Unfortunately, the instrument you wanted to buy has recently been sold.
But, if you fill out the form below, we will get back to you with availability and price.
Please check the similar instruments available for purchase below.



Similar Instruments Available for Purchase. Please follow links for more information and price.

 ManufacturermodelInstrument TypeOEM NameStarting Price
Price and InfoAGILENT465ARF AmplifierRF AmplifierBuy it Now Price $500.00
Price and InfoAGILENT8447ARF AmplifierPreamplifierBuy it Now Price $1,000.00

Contact us to buy used AGILENT 8447D at the Purchase Price you want.
