Used AGILENT 8447F-H64 Buy / Purchase at the right Price.
Custom-Cal has a used AGILENT 8447F-H64 Dual Preamplifier in stock and ready for purchase at a fair price. All units sold by Custom-Cal are provided with an applicable NIST traceable calibration/performance verification and a 90 day warranty (unless otherwise noted). With this added service, you can be confident that you are buying a fully functional unit that meets OEM specifications.

We are always willing to work with the customer on price. If you would like to buy a used AGILENT 8447F-H64 but, don't see the price you want, please name your price below and we will try to find one for you to purchase.
AGILENT 8447F-H64 Dual Preamplifier


General description of the used AGILENT 8447F-H64 for sale.
The HP 8447F Option H64 Amplifier is a general purpose wide band amplifier with Type-N connectors. It contains two preamplifiers. One provides 26 dB minimum gain to signals from 9 kHz to 50 MHz. The other provides 25 dB minimum gain to signals from 100 kHz to 1300 MHz. Specifications. Frequency range: 0.1 to 1300 MHz (Preamp), 9 kHz to 50 MHz (Low Freq. Preamp). Typical 3 dB bandwidth (Std, Opt 001 and Opt 011): 0.075 to 1700 MHz (Preamp), 6 kHz to 400 MHz (Low Freq. Preamp). Mean Gain (20° to 30°C): 25 dB minimum (Preamp), 26 dB minimum (Low Freq. Preamp). Gain flatness across frequency range: ± 1.5 dB (Preamp), ± 2 dB (Low Freq. Preamp). Noise Figure: < 8.5 dB (Preamp). Output power for 1 dB gain compression: > +7 dBm (typical)(Preamp), > +15 dBm (0.1 to 1000 MHz) (Low Freq. Preamp). Harmonic distortion: -30 dB for 0 dBm output (typical)(Preamp), -35 dBc for +10 dBm output (Low Freq. Preamp). Typical output for <-60 dB harmonic distortion: -30 dBm (Preamp), -2 dBm (Low Freq. Preamp). VSWR, 9 kHz to 50 MHz: <2.0:1 (Low Freq. Preamp). VSWR, 1 to 1300 MHz: < 2.0:1 Input, < 2.2:1 Output (Preamp). Impedance: 50 ohm. Reverse isolation: >40 dB (Preamp). Maximum DC input voltage: ±10 V.

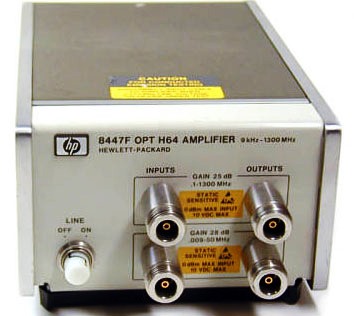

       Stock Photo

Unfortunately, the instrument you wanted to buy has recently been sold.
But, if you fill out the form below, we will get back to you with availability and price.
Please check the similar instruments available for purchase below.



Similar Instruments Available for Purchase. Please follow links for more information and price.

 ManufacturermodelInstrument TypeOEM NameStarting Price
Price and InfoAGILENT465ARF AmplifierRF AmplifierBuy it Now Price $500.00
Price and InfoAGILENT8447ARF AmplifierPreamplifierBuy it Now Price $1,000.00
