Used EIP 25B Buy / Purchase at the right Price.
Custom-Cal has a used EIP 25B CW Frequency Counter in stock and ready for purchase at a fair price. All units sold by Custom-Cal are provided with an applicable NIST traceable calibration/performance verification and a 90 day warranty (unless otherwise noted). With this added service, you can be confident that you are buying a fully functional unit that meets OEM specifications.

We are always willing to work with the customer on price. If you would like to buy a used EIP 25B but, don't see the price you want, please name your price below and we will try to find one for you to purchase.

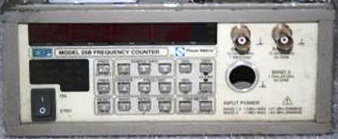

EIP 25B CW Frequency Counter


General description of the used EIP 25B for sale.
The EIP 25B is a microprocessor-based microwave frequency counter that measures the frequency and power of CW signals. The frequency range of the 25B is from 10 Hz to 20 GHz. Frequency measurements are divided into three bands. Power meaurements can only be made in Band 3. Band 1 is a high impedance input (1 MOhm/20pF) and covers frequency range from 10 Hz to 100 MHz, with a sensitivity of 25 mV rms. Band 2 has an input impedance of 50 ohms and covers the frequency range from 10 MHz to 1 GHz, with a sensitivity of -20 dBm. Band 3 has an input impedance of 50 Ohms and covers the frequency range from 1 GHz to 20 GHz, with a sensitivity of -30 dBm from 1 GHz to 12.4 GHz and a sensitivity of -25 dBm from 12.4 to 20 GHz. Through keyboard control and remote operation via the general purpose interface bus (GPIB), the EIP 25B counter provides frequency features such as offsets, frequency multiplication, center frequency, and frequency limits. A high stability time base is available as an option.Measurements are presented on a 12-digit LED display that is sectionalized to read directly in GHz, MHz, kHz, and Hz.

       Stock Photo

Unfortunately, the instrument you wanted to buy has recently been sold.
But, if you fill out the form below, we will get back to you with availability and price.
Please check the similar instruments available for purchase below.




Contact us to buy used EIP 25B at the Purchase Price you want.
