Custom-Cal has a high success rate in repairing Agilent's 8590 Series of Spectrum Analyzers. We specialize in quick turnaround times and we can handle expedited deliveries upon request.
The Agilent 8590 E series portable spectrum analyzers including the ( 8591E, 8593E, 8594E, 8595E, 8596E ) bring comprehensive measurement capabilities to RF, microwave, and digital applications. Performance specifications include low phase noise of –105 dBc at 30 kHz offset and frequency-synthesized accuracy of 2.1 kHz at 1 GHz, which can be improved to 210 Hz with an optional precision frequency reference. Second- and third-order dynamic ranges are 77 and 90 dB, respectively. Calibrated amplitude range is +30 to –130 dBm with Option 130, and calibrated onscreen display range is 70 dB. Narrow resolution bandwidths of 30, 100, 200 EMI, and 300 Hz are available on an optional circuit card, which can be added to these analyzers at any time.

Errors, Options and Personalities for Spectrum Analyzer.
  Hardware Error Messages:
LOCK OFF
  Indicates slow YTO tuning. This message may appear if the analyzer is using default correction factors. f LOCK OFF appears briefly during the CAL FREQ routine, during instrument preset, or when the frequency value is changed; this is normal and does not indicate a problem.
ADC-GND FAIL
  During an instrument preset, the analog-to-digital converter reading for ground on the A16 Processor/Video assembly is outside the test limit. An instrument preset routine is also performed during the self-calibration routines.
ADC-TIME FAIL
  During an instrument preset, the time between analog-to-digital conversion readings is greater than the test limit. An instrument preset routine is also performed during the self-calibration routines.
ADC-2V FAIL
  During an instrument preset, the analog-to-digital converter reading for the +2 V reference on the A16 Processor/Video assembly is outside the test limit. An instrument preset routine is also performed during the self-calibration routines.
CAL: DATA NOT STORED
  The current correction-factor data is the default calibration data. The instrument firmware prevents the default data from being stored. While the default data is in use, a flag is set. If CAL STORE is pressed, the error message is displayed and CAL STRORE is disabled. Successful completion of the, CAL AMPTD routine clears the flag.
CAL: cannot execute CALAMP
  The preamplifier gain is not set to 0 dB. The preamplifier gain must be set to 0 dB for the CAL AMPTD routine to be performed.
CAL: FM SPAN SENS FAIL
  During the CAL FREQ self-calibration routine the analyzer cannot set the span sensitivity of the FM coil. The output of the fine-tune DAC, located on the A 7 Analog Interface assembly, is changed to move the displayed signal four divisions. If the signal does not move to within ± 1.25 divisions of the expected display position, the error message is displayed.
CAL: GAIN FAIL
  During the CAL AMPTD routine, the amplitude of the video signal at the ADC on the A16 Processor/Video assembly is too low. The error message appears when the reference-level-calibration DAC, located on the A7 Analog Interface assembly, has been adjusted to its maximum of 255, and the amplitude of the video signal remains below tolerance.
Cal harmonic >= 5.7 GHz NOT found
  Indicates that the CAL YTF routine for an 8595E cannot find a harmonic of the 300 MHz calibration signal.
CAL: MAIN COIL SENSE FAIL
  The analyzer could not set up span sensitivity of the main coil.
CAL: NBW 200 Hz notch amp failed
  Indicates that the 200 Hz resolution bandwidth is not the correct shape for the calibration routine.
CAL: NBW 200 Hz notch failed
  Indicates that the 200 Hz resolution bandwidth is not the correct shape for the calibration routine.
CAL: NBW 200 Hz width failed
  Indicates that the 200 Hz resolution bandwidth is not the correct bandwidth for the calibration routine.
CAL: NBW gain failed
  Indicates that one of the resolution bandwidths is not the correct amplitude for the calibration routine.
CAL: NBW width failed
  Indicates that one of the resolution bandwidths is not the correct width for the calibration routine.
CAL: RES BW AMPL FAIL
  During the CAL AMPTD routine, the insertion loss of a resolution bandwidth filter, relative to the amplitude of the 3 kHz resolution bandwidth filter, was greater than 2.2 dB.
CAL SIGNAL NOT FOUND
  During a self-calibration routine, the CAL OUT signal cannot be found. The primary purpose of the CAL OUT check is to confirm that CAL OUT is connected to the input. A CAL OUT signal that is not within 300 MHz ±50 MHz, or is not greater than or equal to -45 dBm, causes this error message to be displayed.
CAL: SPAN SENS FAIL
  During the CAL FREQ self-calibration routine the main-coil span-sensitivity adjustment routine has failed, indicating that the spans controlled by the main coil (LO spans greater than 10 MHz) are not working correctly. The span-sensitivity adjustment routine checks for three displayed signals: 0 Hz, 300 MHz, and 600 MHz. If three signals are not found in a 750 MHz span, the error message is displayed.
CAL YTF FAILED
  Indicates that the CAL YTF routine could not be successfully completed.
CAL: ZERO FAIL
  The analyzer could not set up the tuning sensitivity of the main coil.
Comb harmonic at_ _ _ GHz NOT found
  Indicates that the CAL YTF routine for the analyzer cannot find a harmonic of the comb generator at frequency displayed.
COMB SIGNAL NOT FOUND
  This message applies to 8592L, 8593E, 8596E model analyzers only.
CONF TEST FAIL
  Indicates that the confidence test failed. If this happens, ensure that the CAL OUT connector is connected to the analyzer input, perform the CAL FREQ & AMPTD routine, and then perform the confidence test again. This message also sets SRQ 110.
FAIL: XXXX XXXXXXXXXX
  A circuit-test failure was detected by the central processing unit (CPU) during power-up or instrument preset. A failure code has two major parts: a 4-digit code followed by a lO-digit code. The lO-digit code contains three separate failure codes. Each failure code must be converted from hexadecimal to binary before it can be interpreted,
FREQ UNCAL
  The YTO (YIG-tuned oscillator) frequency is more than 20 MHz from the desired frequency. If the FREQ UNCAL message appears constantly, it indicates a YTO-tuning error and the CAL FREQ routine should be performed. FREQ UNCAL appears briefly during the CAL FREQ routine; this is normal and does not indicate a problem.
Gate card not calibrated
  This message can indicate that either the CAL AMPTD routine need to be performed before the time-gating functions can be used, or that something was connected to the GATE TRIGGER INPUT connector during the CAL AMPTD or CAL FREQ & AMPTD routines.
INVALID CARD: BAD MEDIA
  Indicates the formatting routine (FORMAT CARD) for the memory card could not be completed. See the description for INVALID CARD above for more information about the possible causes of this message.
INVALID CARD: DATA ERROR
  Indicates the data could not be retrieved from the memory card.
INVALID SCRMOVE
  Indicates the analyzer may have a hardware failure.
LO UNLVL
  Indicates that the analyzer local oscillator distribution amplifier is not functioning properly. This message may appear on the 8592L, 8593E, 8594E, 8595E, and 8596E with Options 009/010, Option 009, or Option 010.
POS-PK FAIL
  The positive-peak-detector check has failed during the confidence test routine, CONF TEST The level of the noise floor for the positive-peak detector is statistically compared to that of the sample detector. The mean of the data from the positive-peak detector should be greater than the mean of the data from the sample detector.
REF UNLOCK
  The oscillator on the A9 third converter is not locked to a 10 MHz frequency reference. The analyzer must be connected to one of the following frequency references.
  • 10 MHz standard timebase. The reference is a room-temperature crystal oscillator (RTXO) that is located on the A25 assembly.
  • Precision frequency reference. The reference is a oven-controlled crystal oscillator (OCXO).
  • External 10 MHz frequency reference.
RES-BW SHAPE FAIL
  During the confidence test routine, CONF TEST, the 3 dB bandwidth of a resolution bandwidth was not within 20% of its nominal value. The 10 kHz, 30 kHz, 100 kHz, 300 kHz, 1 MHz, and 3 MHz bandwidths are checked and the bandwidths that fail are displayed.
RES-BW NOISE FAIL
  During the confidence test routine, CONF TEST, the noise floor level was too high for the indicated resolution bandwidth. Starting with the widest resolution bandwidth, the test compares the noise floor amplitude of each bandwidth to the noise floor amplitude of the next, narrower resolution bandwidth. If a decrease in noise-floor amplitude does not occur, the test displays the narrower bandwidth as a test failure.
RF PRESEL ERROR
  Indicates that the preselector peak routine cannot be performed. For 8592L, 8593E, 8595E, and 8596E spectrum analyzers only.
RF PRESEL TIMEOUT
  Indicates that the preselector peak routine cannot be performed.
SAMPLE FAIL
  During the confidence test routine, CONF TEST, the sample-detector test has failed. The test makes a statistical comparison between the peak-to-peak amplitude of the noise floor for the positive-peak detector and the noise floor for the sample detector. The error message is displayed if the standard deviation of the data for the sample detector is less than the standard deviation of data for the positive-peak detector.
SMPLR UNLCK
  Indicates that the sampling oscillator circuitry is not functioning properly.
STEP GAIN/ATTEN FAIL
  During the confidence test routine, CONF TEST, the step-gain switching check has failed. Looking at displayed noise, the test steps the reference level from -60 dBm to +30 dBm, in 10 dB increments, with the input attenuator set to 60 dB. The error message is displayed if the noise level does not increase for each 10 dB step in reference level.
TG UNLVL
  This message can indicate the following: that the source power is set higher or lower than the analyzer can provide, that the frequency span extends beyond the specified frequency range of the tracking generator, or that the calibration data for the tracking generator is incorrect. See the 8590 E-Series and L-Series Spectrum Analyzers User's Guide for more information.
VID-BW FAIL
  During the CONF TEST routine the video bandwidth check has failed. The test checks for a decrease in the peak-to-peak excursion of the noise trace as the video bandwidth is decreased.

Instrument Options:
001 75 Ω Input
004 Precision Frequency Reference
009 LO and Sweep + Tune
010 50 Ω Built-in Tracking Generator, 100 kHz to 1.8 GHz
011 75 Ω Built-in Tracking Generator, 1 MHz to 1.8 GHz
012 Source for DECT Receiver Test
041 HP-IB and Parallel Printer Interfaces
043 RS-232 and Parallel Printer Interfaces
050 Improved Amplitude Accuracy (NADCTDMA bands)
051 Improved Amplitude Accuracy for PDC Bands
052 Improved Amplitude Accuracy for PHS Band
053 Improved Amplitude Accuracy for CDMA Band
101 Fast Time Domain Sweeps and Analog + Display
102 AM/FM Demodulator and TV Sync Trigger(TV Sync requires Opt 101)
103 Quasi-Peak Detector/AM-FM Demodulator
105 Time-gated Spectrum Analysis
107 Time-gated Spectrum Analysis
110 CT2 Demodulator
112 DECT Demodulator
119 Noise Figure
130 Narrow Resolution Bandwidths (30 to 300 Hz and 200 Hz EMI)
140 Narrow Bandwidths and Precision Frequency
151 DSP, FAST ADC, and Digital Demodulator
160 PDC, PHS, NADC, and CDMA Firmware for Opt 151
163 GMS/DCS1800 Firmware for Option 151
180 TV Picture NTSC/PAL/SECAM
301 TV Sync Trigger, Fast Time Domain Sweeps, AM/FM Demodulator, Analog + Display
711 50/75Ω Matching Pad/100 Vdc Block


Measurement Personalities:
11770A Link Measurement Personality
85700A Blank 32-KB Memory Card
85702A Blank 128-KB Memory Card
85712D EMC Auto-Measurement Personality
85713A Digital Radio Measurement Personality
85714A Scalar Measurement Personality
85715B GSM Measurement Personality
85717A CT2-CAI Measurement Personality
85718B NADC-TDMA Measurement Personality
85719A Noise Figure Measurement Personality
85720C PDC Measurement Personality
85721A Cable TV Measurements and System Monitor Personality
85722B DCS1800 Measurement Personality
85723A Option H01 DECT Measurement Personality
85724A Broadcast Measurement Personality
11982A Opt 001 Lightwave Converter Personality
85725B CDMA Measurement Personality
85726B PHS Measurement Personality

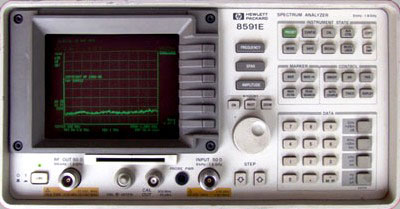

Description of Model
Portable Spectrum Analyzer
• Frequency range: 9 kHz to 1.8 GHz, 1 MHz to 1.8 GHz (opt 001)
• Frequency accuracy: ± 210 Hz (CF = 1 GHz)
• Frequency Span Range: 0 Hz (zero span); 10 kHz to 1.8 GHz: 1 kHz min (Opt 130)
• Frequency Span Resolution: Four digits or 20 Hz x N. whichever is greater
• Frequency Span Accuracy Span ≤10 MHz x N: ± 2% of span
• Frequency Span Accuracy Span >10 MHz x N: ± 3% of span
• Sweep Time Range: Span = 0 Hz or > 10 kHz: 20 ms to 100 s
• Resolution bandwidth range: 30 Hz to 3 MHz
• Video bandwidth range: 30 Hz to 1 MHz in 1, 3 sequence (1 Hz to 1 MHz with Opt 130)
• Amplitude Range: Displayed average noise level to +30 dBm
• Average noise level (narrowest RBW): -130 dBm, ≤ -78 dBmV (Opt 001)
• Optimum dynamic range 2nd/3rd order: 77 dB / 90 dB
• Amplitude accuracy: ± 1.7dB
• Data Storage (nominal)Internal: 50 traces; 8 states
